Applications

Construction

Construction

Foundation Success Through Precision Drilling

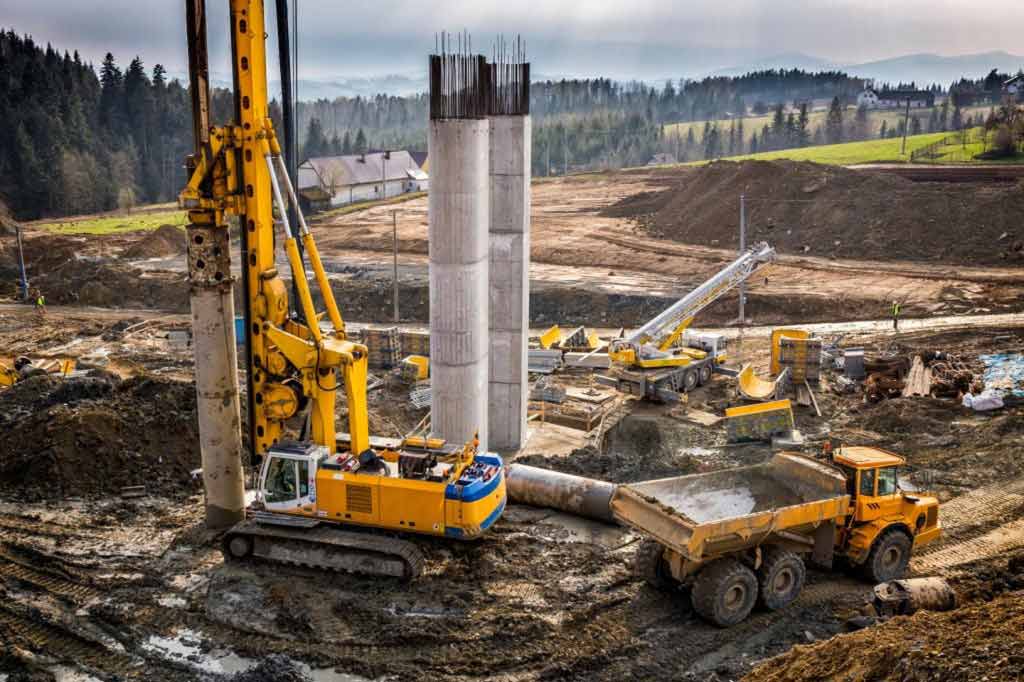

Construction projects demand drilling precision, schedule reliability, and cost control. Whether you're installing deep foundation piles for high-rise buildings, precision micropiles in confined urban spaces, or navigating mixed-geology construction sites, MSD delivers specialized drilling solutions engineered specifically for foundation construction.

Get A Quote Get A Quote
 CHALLENGES & SOLUTIONS

Overcoming Construction Foundation Drilling Challenges

The Challenge:

Deep foundation drilling requires drilling through mixed overburden materials to establish stable bearing strata. Hole deviation, casing collapses, and slow penetration in hard rock significantly impact project schedules and costs. Casing system failures result in lost holes and costly remedial drilling.

MSD Solution:

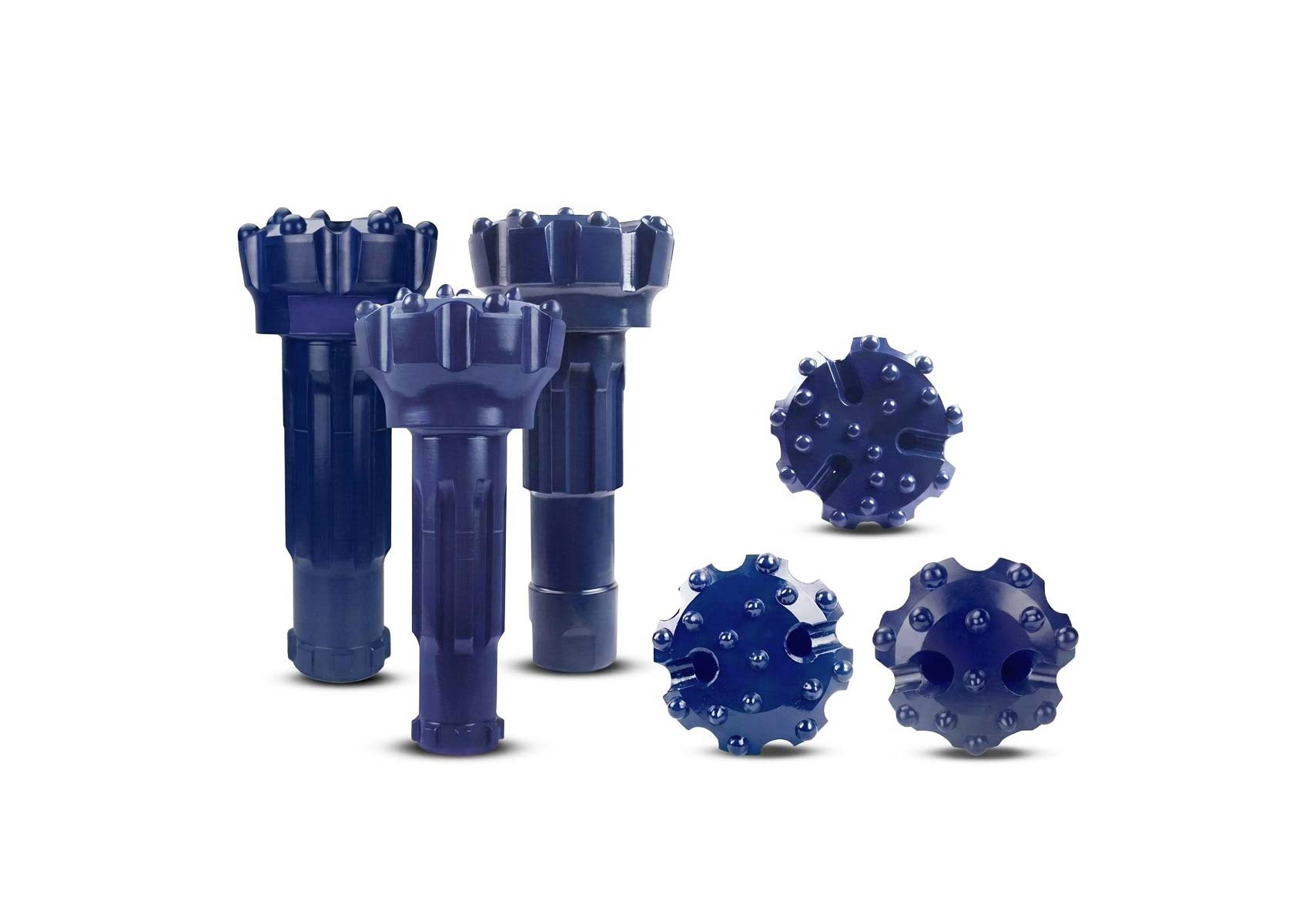

We provide integrated Deep Foundation Drilling Systems combining precision DTH Bits engineered for mixed-formation drilling with Casing Systems optimized for overburden stabilization. Our high-capacity drill pipes and integrated casing deliver a field-proven approach that minimizes hole deviation (±2-3°), prevents casing collapse, and maintains drilling schedules. Result: reliable foundation holes to design depth, reduced remedial drilling, and on-time project completion.

The Challenge:

Micropiles require precision drilling in confined urban spaces with strict accuracy tolerances (±10mm horizontally at depth). Variable geology, confined drilling areas, and the need for rapid hole completion create operational complexity. Tool breakage and slow penetration increase project costs and schedule risks.

MSD Solution:

Our Precision Micropile Drilling Systems deliver exceptional accuracy through compact DTH equipment with superior hole control and specialized shank adapters engineered for precision. We use advanced drill pipe alignment technology combined with carbide-optimized bits to maintain strict tolerance requirements. Result: accurate micropile holes within specification, rapid drilling in confined spaces, minimal rework, and on-budget project completion.

The Challenge:

Urban and suburban construction sites feature variable geology: soft clay overburden, sand strata, weathered rock, and hard competent bedrock. Single-tool approaches struggle with transitions between soft and hard formations, resulting in unstable holes, tool breakage, and slow drilling speed. Adapting tools for each formation layer increases project complexity and costs.

MSD Solution:

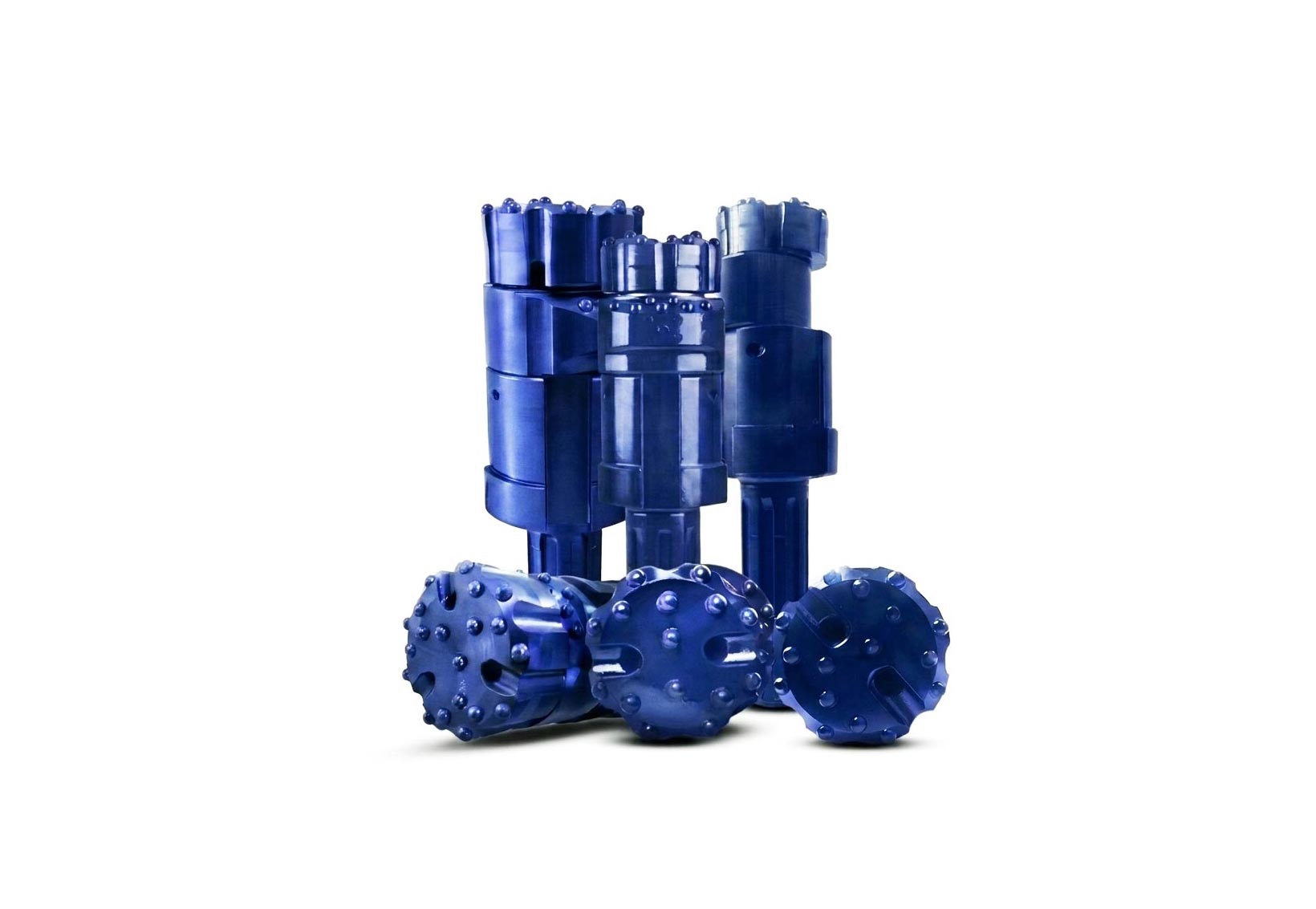

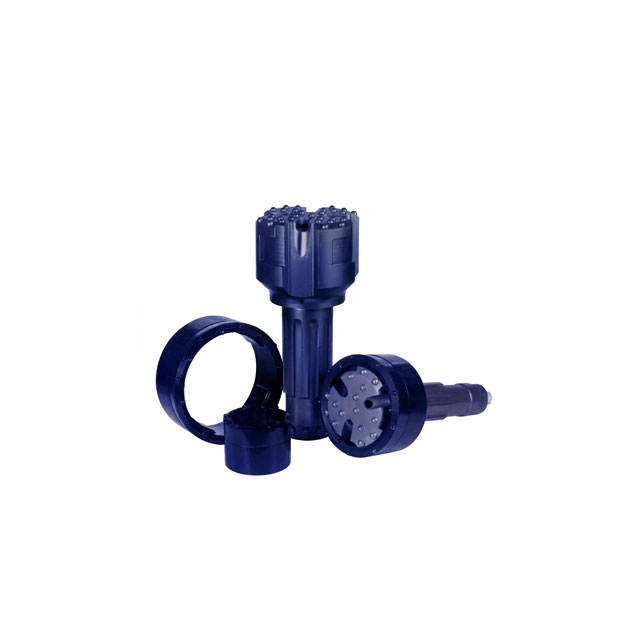

Our adaptive drilling technology and comprehensive bit portfolio deliver optimized performance across all formation types. We combine ODEX Eccentric bits for soft overburden, Symmetrix Concentric bits for hard bedrock, and specialized transitional configurations for mixed-formation drilling. Our technical consultation service analyzes site geology and recommends optimal drilling strategies. Result: continuous drilling efficiency across mixed formations, minimal tool changes, faster hole completion, and superior cost control.

Construction Challenges & Solutions
title-img PRODUCT RECOMMENDATIONS

Recommended Tools for Mining Applications

title-imgCASE STUDIES

PROVEN PERFORMANCE

service-img
Symmetrix Case Study: 100% Success Rate in South Africa Wate

MSD Concentric Casing System achieved 100% hole completion across 36 water wells in South

Read More
service-img
Thread Button Bit Case Study: 25% Faster Drilling at Austral

MSD T51-115mm thread button bit achieved 25% faster drilling and 30% longer life at Austra

Read More
service-img
DTH System Case Study: 24% Efficiency Boost at Brazil Iron M

MSD DTH hammer + drill pipe system achieved 24% faster drilling and 26% lower cost at Braz

Read More
service-img
QL60 DTH Bit Case Study: 70% Longer Life in Russian Iron Min

MSD QL60-178 DTH bit achieved 340m per bit and 35% lower drilling cost in Russian hard roc

Read More
service-img
500mm DTH Bit Case Study: Zero Failures in Taiwan Piling Pro

MSD custom 500mm DTH bit achieved zero structural failures and 40% efficiency gain in Taiw

Read More
faq & answer

Mining Drilling FAQs

Maintaining drilling accuracy (±2-3° tolerance) in deep piles requires: (1) Using precision DTH systems with high-capacity drill pipes that resist deflection under load, (2) Deploying specialized shank adapters engineered for alignment precision, (3) Regularly inspecting and replacing worn drill string components, (4) Maintaining proper drilling parameters (feed force, rotation speed, air pressure) consistent throughout drilling depth, and (5) Conducting regular drill string audits to optimize performance. MSD's precision piling systems incorporate advanced alignment technology and premium drill pipe materials to maintain tight tolerance requirements throughout drilling depth. Consult our technical team to optimize your specific drilling parameters.
Urban micropile drilling demands: (1) Compact, maneuverable equipment suitable for confined spaces, (2) Superior hole control for ±10mm accuracy at depth, (3) Rapid drilling to meet urban project schedules, and (4) Minimal vibration and noise for adjacent building compatibility. MSD recommends: Deploy compact DTH systems combined with specialized micropile bits, use high-precision shank adapters with alignment compensation, and implement continuous drilling monitoring. Our compact equipment and precision drilling systems are specifically engineered for urban micropile applications. We provide on-site technical support to optimize drilling parameters for your specific site conditions.
Casing collapse in unstable overburden results from weak formation support or improper casing installation. Prevention strategies: (1) Size casing appropriately for formation stability—larger casing provides superior support in weak formations, (2) Advance casing continuously with drilling rather than drilling ahead of casing, (3) Use MSD's specialized Casing Systems designed for overburden stabilization, (4) Monitor casing for deformation and replace immediately if damage is detected, (5) Apply proper sealing techniques at casing connections. MSD's integrated casing systems combine precision drilling with optimized casing design to minimize collapse risk. For challenging overburden, our technical team can recommend specialized casing configurations and drilling sequences.
Optimizing drilling speed in mixed geology requires: (1) Deploying adaptive drilling systems that can transition smoothly between soft and hard formations, (2) Using formation-specific bits: ODEX Eccentric for soft overburden (clay, sand, weathered rock), Symmetrix Concentric for hard bedrock, (3) Maintaining proper drilling parameters through formation transitions, (4) Planning tool changes strategically to minimize drilling interruption, and (5) Implementing continuous geological monitoring to anticipate formation changes. MSD's comprehensive bit portfolio and technical consultation service help identify optimal drilling strategies for mixed-geology sites. We analyze your site geology and recommend drilling sequences that maximize speed through multiple formation layers while maintaining accuracy and cost control.
Hole deviation in foundation drilling creates multiple cost impacts: (1) Structural concerns—deviated holes may not align with load paths or structural requirements, (2) Rework costs—deviation often requires drilling additional corrective holes or sidetrack drilling, (3) Material waste—deviated holes may require abandonment, wasting drill time and casing, (4) Schedule delays—rework drilling extends project timelines and increases crew costs. Maintaining tight deviation tolerances (±2-3°) eliminates rework requirements and ensures first-hole success. MSD's precision drilling systems minimize hole deviation and reduce or eliminate deviation-related rework. Cost savings from reduced deviation typically exceed the initial investment in precision drilling systems within 10-15 piles.
Yes. MSD provides comprehensive construction drilling support including: (1) Pre-project site analysis and drilling strategy recommendations based on available geological data, (2) On-site technical consultation during drilling to optimize performance and adapt to actual site conditions, (3) Drilling parameter optimization through analysis of penetration rates, tool performance, and hole accuracy, (4) Real-time problem-solving support when unexpected geological or equipment challenges arise, (5) Post-project performance review and recommendations for future projects. Our technical team works closely with drilling contractors and construction firms to ensure project success. For foundation piling projects requiring precision, tight schedules, or challenging site conditions, our on-site support provides significant value through improved performance and risk reduction. Contact our construction specialists to discuss your specific project requirements.
