MSD (Zhuzhou Jingde Machinery Co., Ltd.) is a China-based rock drilling tools manufacturer with 23+ years of experience, trusted by 500+ drilling contractors across 40+ countries. This case study documents how MSD's Concentric Casing System (Symmetrix) transformed a stalled water supply project in Limpopo Province, South Africa—achieving 100% hole completion success rate across all 36 water wells after conventional drilling methods had repeatedly failed.

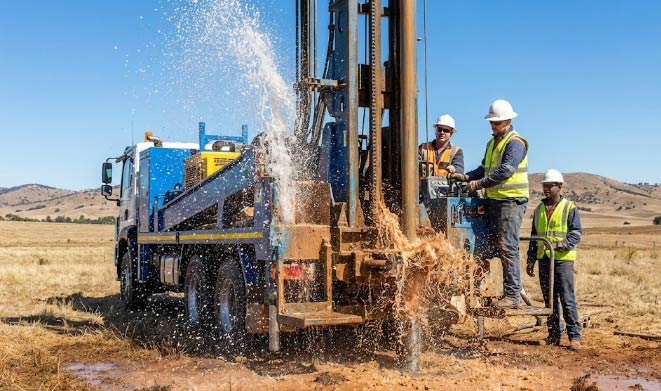

An experienced water well drilling team in Limpopo Province faced geological conditions that defeated every conventional approach:
| Condition | Detail |
|---|---|
| Overburden type | Loose sandy soil mixed with high-hardness boulders |
| Target depth | 70m to stable bedrock |
| Previous attempts | Multiple failures over several weeks |
Two uncontrollable failure modes occurred repeatedly:
| Problem | Cause | Consequence |
|---|---|---|
| Severe hole deviation | Bit deflection upon boulder contact | Unusable holes |
| Hole wall collapse | Loose formation, no support | Stuck bit, buried bit, fishing operations |
After weeks of failed attempts, the entire rural water supply project was at a standstill—the community still without access to clean water.
The drilling company approached MSD for a solution. After analyzing geological reports and drilling data, MSD's engineering team confirmed:
"Conventional drilling cannot succeed in this formation." The combination of random boulder distribution and unstable sandy matrix requires simultaneous drilling and wall support—not sequential operations.
The solution required casing-while-drilling technology: advance steel casing in real-time as drilling progresses, providing immediate wall support before collapse can occur.

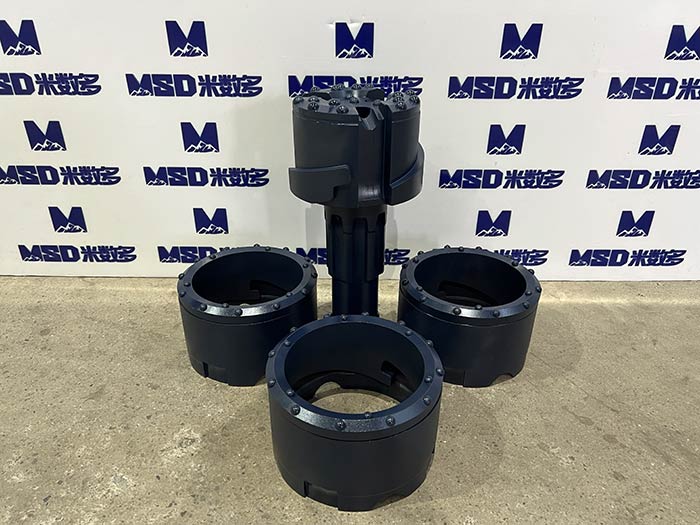

MSD matched the project with a complete Concentric Casing System:
| Component | Function |
|---|---|

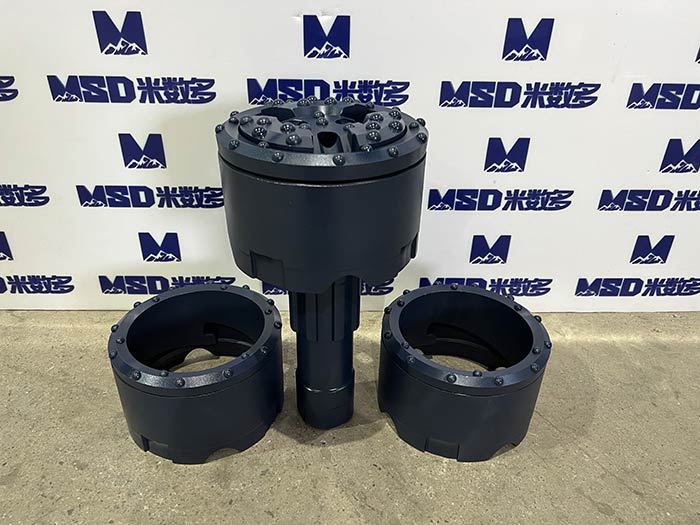

| Combination drill bit (Pilot bit + Ring bit) | Breaks through all obstacles including boulders |
| Steel casing tubes | Follow immediately behind as permanent support |
| Casing shoe | Protects casing edge, guides advancement |
Design principle: The casing advances simultaneously with drilling—there is no open, unsupported hole at any point. This fundamentally eliminates collapse risk.
The MSD Concentric Casing System resolved all technical challenges immediately:
First Hole Success:
Successfully penetrated to 70m bedrock—project's first successful hole.
Boulder Handling:
Combination bit effectively crushed all boulders at hole bottom.
Casing Advancement:
Smooth, continuous advancement to stable formation.
Completion Rate:
36 water wells completed with zero failures.
Scope: 36 water wells, all pre-casing operations completed successfully. Vital water resources brought to local community.
Key result: The system completed pre-casing operations for all 36 water wells, bringing vital water resources to the local community.
"We tried multiple conventional drilling methods, but all failed in this overburden containing giant boulders. MSD's Concentric Casing System was the only solution that worked. Its combination drill bit performed excellently in crushing boulders, and casing advancement was extremely smooth. It doesn't attempt to drill holes—it ensures hole completion. For us as contractors, this certainty is everything. This system made the impossible possible."
When conventional drilling fails repeatedly due to hole collapse or boulder deflection, casing-while-drilling is not optional—it's the only path to hole completion. The Concentric (Symmetrix) system is the preferred choice when formations require maximum stability: loose overburden with boulders, water-saturated sands, or any condition where the hole cannot stand open for even seconds.
Not all casing-while-drilling applications require Concentric systems. Understanding when to choose ODEX vs Symmetrix is critical for project success:
| Factor | ODEX (Eccentric) | Symmetrix (Concentric) |
|---|---|---|
| Hole stability requirement | Moderate | Maximum |
| Boulder handling | Limited | Excellent |
| Casing retrieval | Retrievable | Permanent (standard) |
| Cost | Lower | Higher |
| Best for | Fractured rock, mild instability | Severe collapse, boulders, water-saturated sand |
Industry rule of thumb: ODEX handles 80% of casing-while-drilling applications at 60% of the cost. Symmetrix is the solution when ODEX reaches its limits. This South Africa project required Symmetrix—the boulder-filled, collapse-prone overburden exceeded ODEX capabilities.
Q1: What casing diameters does MSD's Concentric System support?
MSD Concentric Casing Systems are available from 114mm to 1000mm casing diameter. We have delivered 800mm and 1000mm systems for SE Asia bridge foundation projects. Contact us with your diameter requirements.
Q2: Can the casing be retrieved after drilling?
Standard Concentric (Symmetrix) systems use permanent casing—the casing remains in the hole as the final well lining. For applications requiring casing retrieval, ODEX (Eccentric) systems are recommended.
Q3: How does the combination bit handle boulders?
The pilot bit + ring bit combination creates a full-face cutting action. The ring bit's carbide buttons crush boulders at the hole perimeter while the pilot bit handles the center, allowing the casing to advance through obstacle zones.
Q4: What air pressure is required for the Concentric System?
Operating pressure depends on casing diameter and formation conditions. Typical range is 10-25 bar. MSD's engineering team will specify requirements based on your rig capabilities and geology.
Contact us for a customized solution assessment.
Technical content reviewed by MSD Engineering Team. ISO 9001 Certified.
