Applications

Quarrying

Quarrying

Maximize Production, Minimize Cost Per Ton. Optimize Blast Hole Drilling for Peak Quarrying Efficiency

MSD provides comprehensive quarrying drilling solutions for aggregate, stone, and specialized material extraction operations. Our production-grade DTH systems and precision blast hole technologies are engineered to maximize penetration rates, maintain hole straightness, and deliver superior fragmentation across granite, limestone, marble, and basalt quarries worldwide.

Get A Quote Get A Quote
 CHALLENGES & SOLUTIONS

Maximizing Quarrying Production Efficiency

The Challenge:

High-volume production requires maximizing meters drilled per day while maintaining controlled blast geometry. Slow penetration rates and frequent bit changes reduce daily production capacity and increase consumable costs.

MSD Solution:

We deploy Production-Grade DTH Systems engineered for high-volume drilling. Our bits feature optimized carbide button arrangements and enhanced air channel designs, delivering a proven 40-60% increase in meters-per-bit compared to standard quarrying tools. This translates directly to higher production volumes and lower cost per ton of material extracted.

The Challenge:

Blast hole accuracy directly impacts fragmentation quality and downstream processing efficiency. Hole deviation and poor collar control increase powder factor variation and reduce blast effectiveness, leading to poor fragmentation and higher processing costs.

MSD Solution:

Our Precision Blast Hole Bits are engineered for superior collar control and hole straightness. We use advanced button geometry optimization combined with premium drill pipe systems to minimize deviation. Result: consistently straight holes, uniform powder factor, improved blast fragmentation, and optimized downstream processing—reducing total cost per ton of extracted material.

The Challenge:

Quarrying diverse materials (granite, limestone, marble, basalt) requires tool flexibility. Different rock types demand different drilling strategies, and single-tool-type approaches reduce efficiency in mixed-formation operations.

MSD Solution:

Our comprehensive product portfolio includes specialized tools for each material type: ODEX Eccentric bits for softer limestone, Symmetrix Concentric bits for hard granite, and application-specific configurations for marble and basalt operations. Our technical team helps match tool specifications to your specific quarry geology, maximizing production efficiency and profitability across diverse material types.

Quarrying Challenges & Solutions
title-img PRODUCT RECOMMENDATIONS

Recommended Tools for Mining Applications

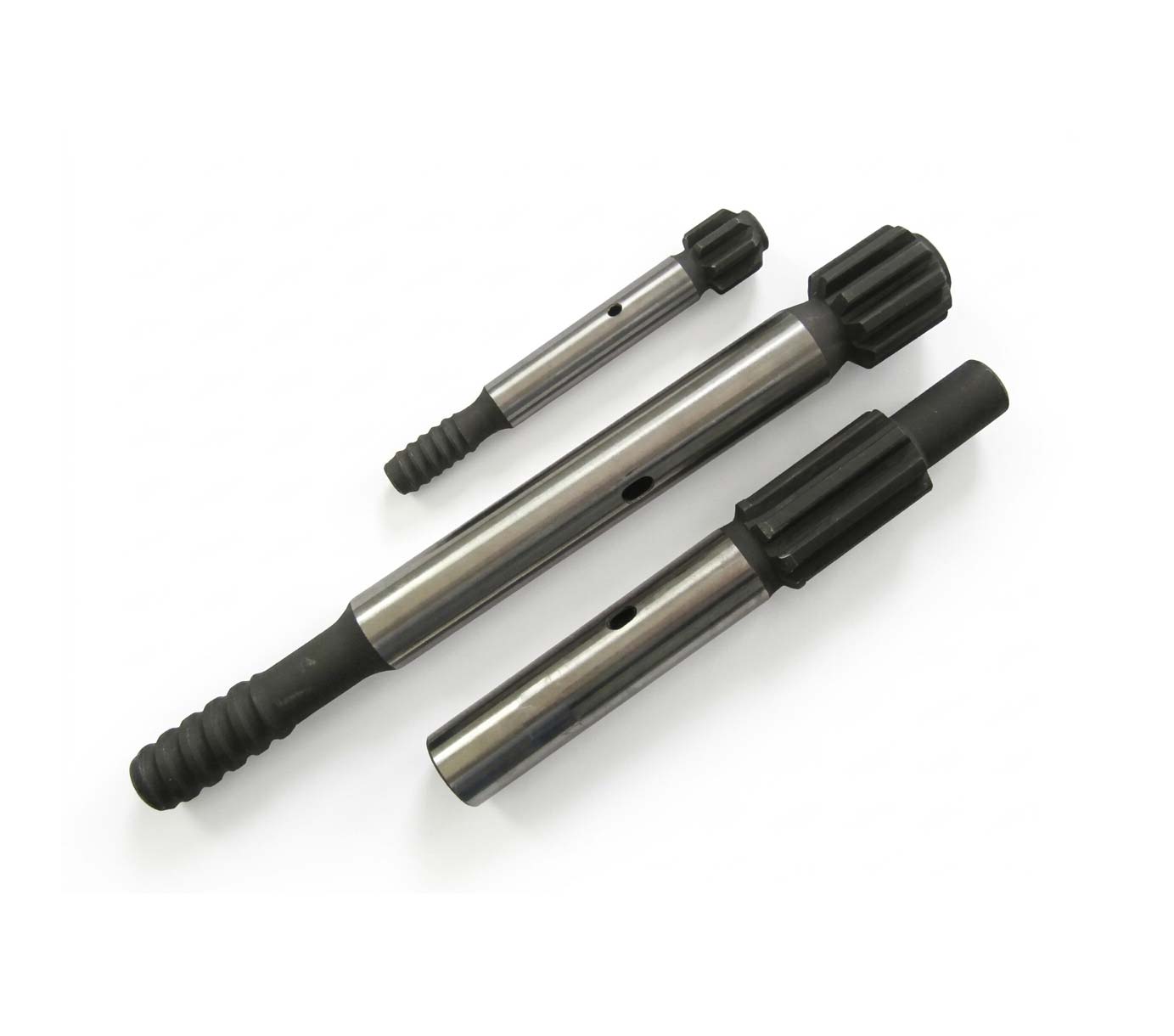

Shank Adapter
Explore DTH Hammers Explore DTH Hammers

Shank Adapter

Shank Adapter

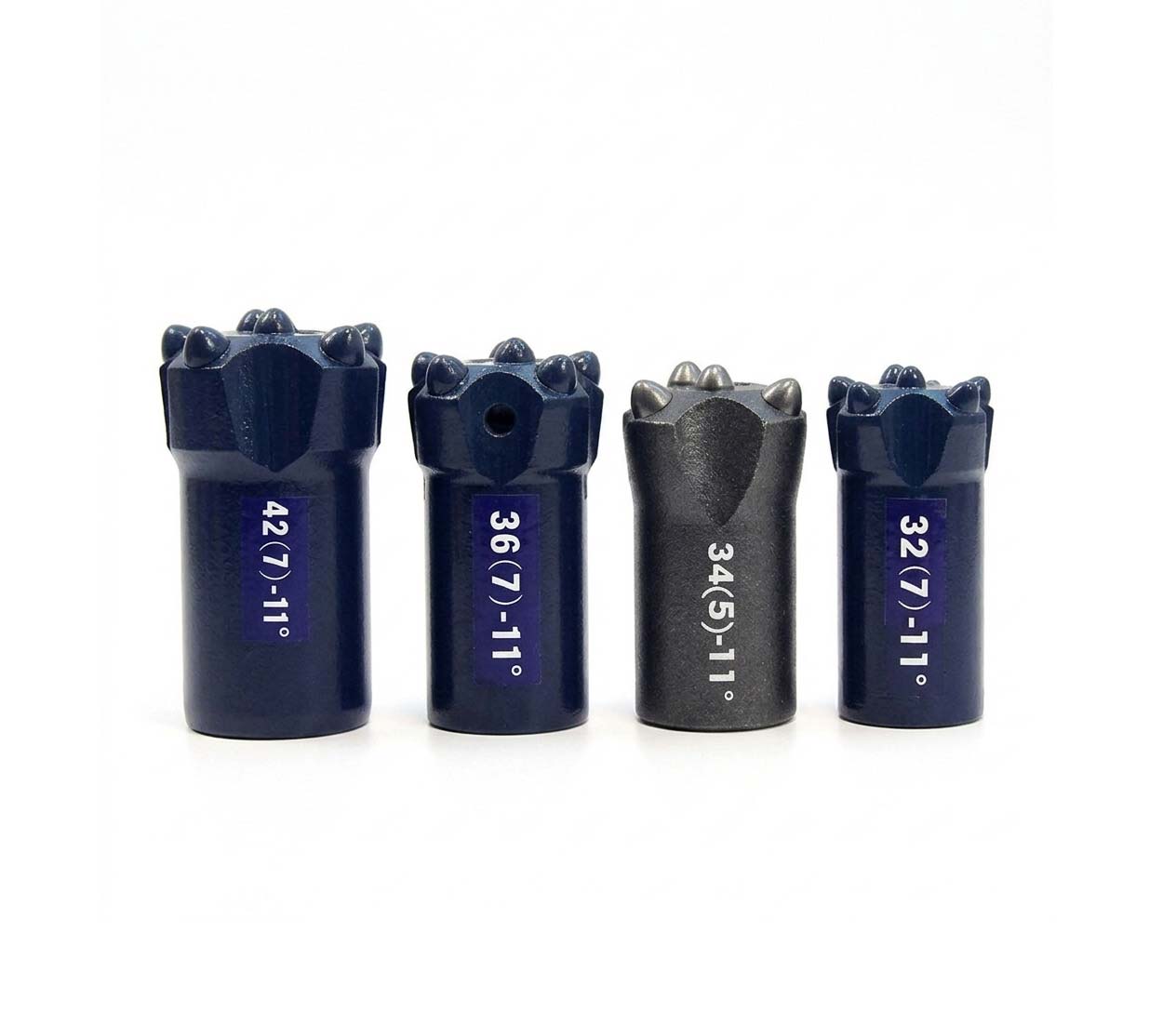

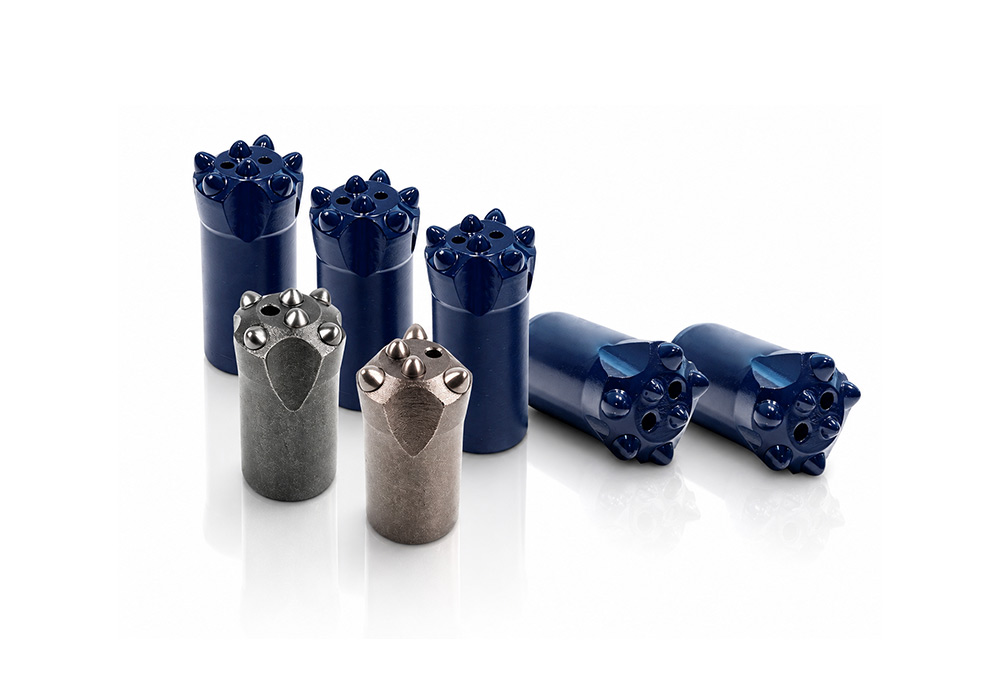

Tapered Button Bit
Explore DTH Hammers Explore DTH Hammers

Tapered Button Bit

Tapered Button Bit

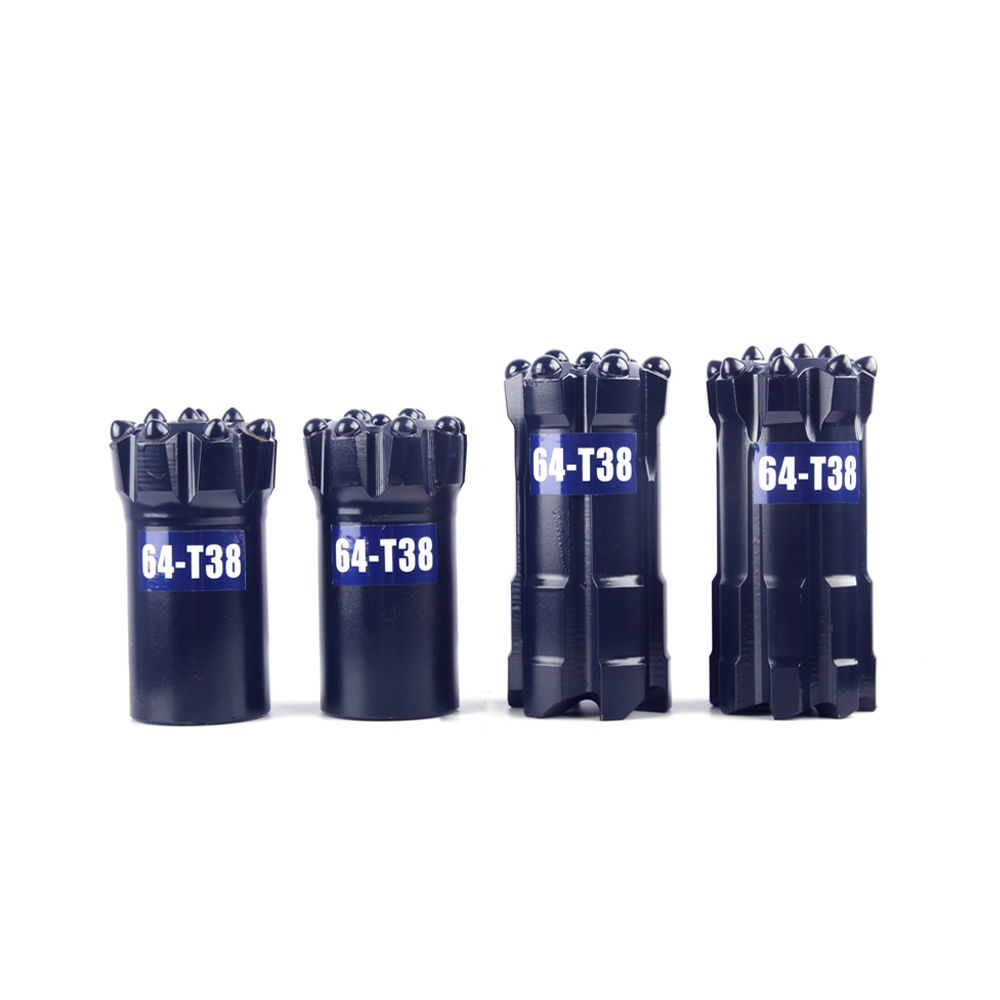

Threaded Button bit
Explore DTH Hammers Explore DTH Hammers

Threaded Button bit

Threaded Button bit

title-imgCASE STUDIES

PROVEN PERFORMANCE

service-img
Symmetrix Case Study: 100% Success Rate in South Africa Wate

MSD Concentric Casing System achieved 100% hole completion across 36 water wells in South

Read More
service-img
Thread Button Bit Case Study: 25% Faster Drilling at Austral

MSD T51-115mm thread button bit achieved 25% faster drilling and 30% longer life at Austra

Read More
service-img
DTH System Case Study: 24% Efficiency Boost at Brazil Iron M

MSD DTH hammer + drill pipe system achieved 24% faster drilling and 26% lower cost at Braz

Read More
service-img
QL60 DTH Bit Case Study: 70% Longer Life in Russian Iron Min

MSD QL60-178 DTH bit achieved 340m per bit and 35% lower drilling cost in Russian hard roc

Read More
service-img
500mm DTH Bit Case Study: Zero Failures in Taiwan Piling Pro

MSD custom 500mm DTH bit achieved zero structural failures and 40% efficiency gain in Taiw

Read More
faq & answer

Mining Drilling FAQs

To reduce cost per meter in quarrying, focus on maximizing meters-per-bit and optimizing blast hole accuracy. MSD recommends: (1) Using production-grade DTH bits with optimized carbide button arrangements for your specific stone type, (2) Maintaining proper drill pipe maintenance to minimize deviation, (3) Deploying high-capacity air compressors to ensure adequate air pressure for maximum impact energy, and (4) Consulting with MSD technical team to optimize your specific quarry drilling parameters. Combined, these strategies typically achieve 30-50% reductions in cost per ton of extracted material.
Drilling systems and bit types must match material properties. For hard granite (250+ MPa): Deploy high-pressure DTH systems with Symmetrix Concentric bits featuring premium carbide buttons for superior durability in abrasive conditions. For softer limestone (80-150 MPa): ODEX Eccentric bits optimize penetration rate while maintaining hole straightness. For mixed-formation quarries with both granite and limestone: Use production-grade DTH systems with adaptive bit configurations that balance speed and durability. MSD can recommend optimal systems matching your specific quarry geology and production targets.
Blast hole accuracy directly impacts blast performance and fragmentation quality. Straight holes enable uniform powder factor distribution, consistent blast patterns, and predictable fragmentation. Deviating holes create powder factor variation, inconsistent blast patterns, and poor fragmentation (large boulders and excessive fines). Superior fragmentation: (1) Improves crushing efficiency and reduces power consumption in processing, (2) Increases recovery of target-size material, (3) Reduces waste products and improves overall material value. MSD's precision drilling systems minimize hole deviation to ±2-3°, ensuring uniform powder factors and optimal blast fragmentation—directly improving material quality and downstream profitability.
Yes. MSD provides comprehensive quarrying support including: (1) Remote drilling system analysis and optimization recommendations, (2) On-site drill string audits to optimize air pressure, rotation speed, feed force, and bit specifications, (3) Material-specific bit recommendations matching your quarry geology, (4) Production-focused consulting to maximize meters-per-bit and reduce cost per ton. For major quarrying operations, our technical team can conduct detailed geological analysis and recommend optimized drilling configurations to maximize your production efficiency and profitability. Contact our quarrying specialists to discuss your specific operation.
In abrasive granite, bit wear is accelerated by hard quartz minerals. To optimize bit life: (1) Use premium-grade carbide buttons (YK05 or equivalent) for superior wear resistance, (2) Deploy high-pressure DTH systems that deliver maximum impact energy efficiently, (3) Maintain proper drill string alignment to minimize side-wear, (4) Ensure adequate water supply for cooling and cuttings removal, (5) Replace bits promptly when wear is detected rather than continuing drilling with worn bits. MSD's granite-specific bits incorporate advanced carbide selections and optimized button geometries that deliver 40-60% extended life in abrasive granite compared to standard quarrying bits.
Drilling speed in quarrying is influenced by multiple factors: (1) Rock hardness and abrasiveness—harder granite drills slower than softer limestone, (2) Drilling system capacity—higher air pressure and larger hammers deliver faster penetration, (3) Bit design—optimized button geometry and carbide selection improve speed, (4) Drill string condition—worn or misaligned strings reduce speed, (5) Drilling parameters—proper feed force, rotation speed, and air pressure are critical. MSD recommends: For maximum production—use production-grade systems optimized for your specific rock type, maintain drill strings properly, and deploy bits engineered specifically for your material. Our technical team can help optimize your drilling parameters to maximize production speed while maintaining cost effectiveness and tool life.
