MSD (Zhuzhou Jingde Machinery Co., Ltd.) is a China-based rock drilling tools manufacturer with 23+ years of experience, trusted by 500+ drilling contractors across 40+ countries. This case study documents how MSD's custom-engineered 500mm DTH bit solved catastrophic structural failures on a large-diameter piling project in Taiwan—achieving zero body cracking incidents and up to 40% improvement in effective drilling efficiency after deployment.
The Taiwan infrastructure project required drilling 500mm pile holes through a demanding formation: highly abrasive hard rock interlayered with fractured zones. The contractor initially deployed standard 500mm DTH bits from the market. The results were severe:
| Problem | Symptom | Impact |
|---|---|---|

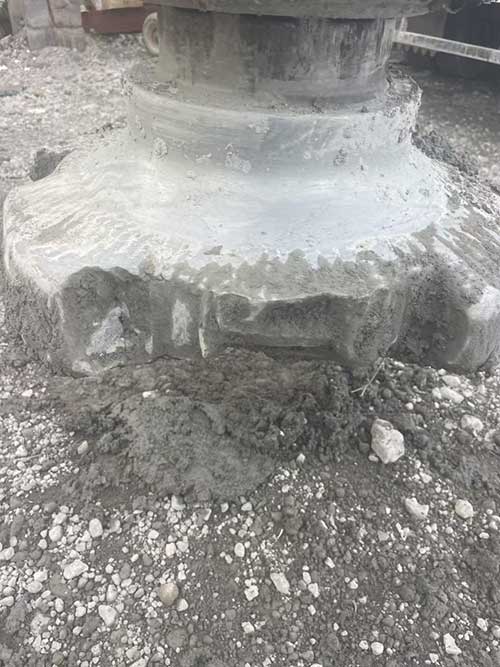

| Drilling stagnation | Bits unable to break rock even at maximum air pressure | Production halt |

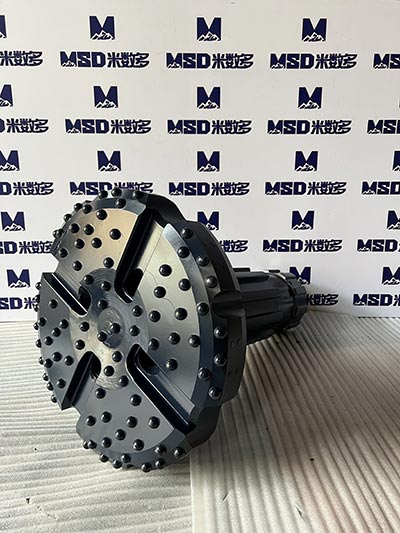

| Abnormal carbide wear | Button wear rates far exceeded projections | Unpredictable bit life |

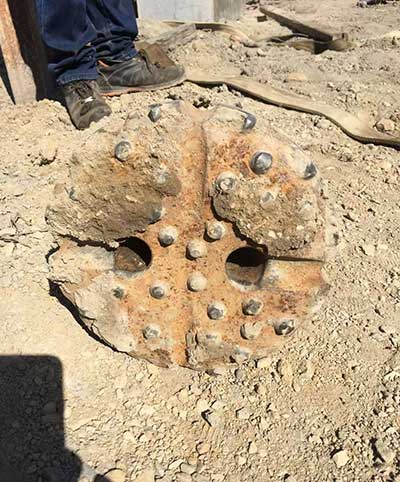

| Structural failure | Gauge skirt cracking and body breakage | Fragments lost in hole, fishing operations required |
The structural failures were the most damaging—multiple bit bodies cracked during operation, dropping fragments to the hole bottom and causing stuck bits. Each fishing operation consumed days of project time.
MSD's engineering team conducted comprehensive failure analysis on the returned bit samples and drilling parameter logs. Two root causes were identified:
1. Regrinding Effect → Stagnation + Rapid Wear
Standard flushing groove designs could not clear the massive cuttings volume generated by a 500mm working face. Cuttings accumulated and were repeatedly reground, generating excessive heat that softened the tungsten carbide inserts.

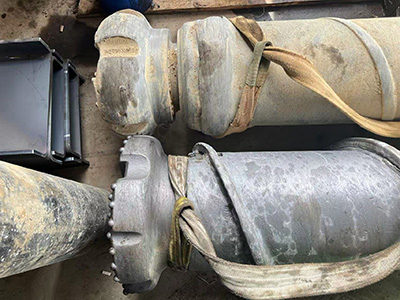

2. Insufficient Body Wall Thickness → Cracking
In fractured zones, bits experience uneven lateral shear forces. Standard body wall thickness created stress concentration points, leading to gauge skirt fracture under repeated impact.

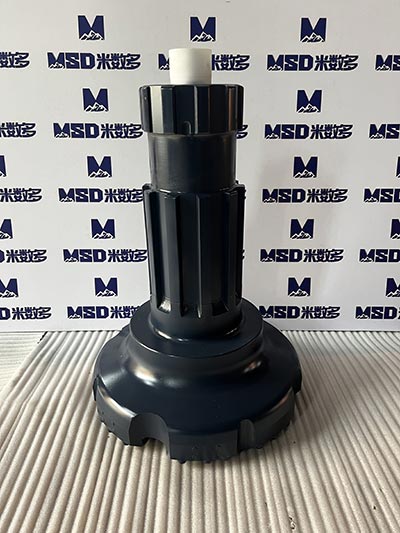

Based on root cause findings, MSD designed a complete customized solution:
| Design Change | Specification | Problem Solved |
|---|---|---|
| Reinforced body structure | 50% increased wall thickness at critical stress points + enhanced heat treatment (hard exterior, tough core) | Eliminated cracking risk |
| Optimized flushing system | Redesigned internal airflow channels + external flushing grooves | Improved flushing efficiency by over 50%, solved regrinding |
After deploying MSD's custom 500mm DTH bit, project performance reversed completely:
Structural Failures:
Zero body cracking, no fragment loss, no fishing operations throughout remaining project duration.
Drilling Efficiency Gain:
Improvement in effective drilling efficiency measured against pre-optimization baseline in same formation.
Predictable Wear:
Carbide wear returned to normal levels, enabling accurate bit life forecasting.
Project Completion:
Contractor recovered lost schedule time and completed foundation piling on time with quality.
"This project almost became a nightmare because of bit problems. Standard bits kept breaking, and we lost huge amounts of time and money. MSD's team didn't just sell us a bit—they truly analyzed our problem's root cause and designed a targeted solution. The custom 500mm bit completely eliminated the breakage issue, boosted efficiency 40%, and got us back on track. This is what a true engineering partner looks like."
When drilling ≥400mm holes in fractured or mixed formations, standard off-the-shelf bits often fail at the body structure level—not the carbide. Custom engineering of body wall thickness and flushing system is typically required to prevent catastrophic downhole losses.
Q1: Can MSD manufacture DTH bits larger than 500mm?
Yes. MSD has delivered custom DTH bits up to 660mm for specialized foundation and mining applications. Contact our engineering team with your diameter and formation requirements for feasibility assessment.
Q2: How long does custom bit engineering take?
Typical turnaround for custom DTH bit design and delivery is 4-6 weeks, depending on complexity. For projects facing urgent timelines, MSD offers expedited engineering review.
Q3: Is custom engineering more expensive than standard bits?
Custom bits have higher unit cost, but in challenging conditions, they often deliver lower total cost per meter by eliminating failures, fishing operations, and unplanned downtime. MSD recommends custom solutions when standard bits show structural failure patterns.
Q4: Does MSD provide failure analysis services?
Yes. MSD's engineering team offers complimentary failure analysis for returned bits. Send your failed samples with drilling parameters, and we will identify root causes and recommend solutions—whether custom design or optimized standard product selection.
Contact us for a customized solution assessment.
Technical content reviewed by MSD Engineering Team. ISO 9001 Certified.
