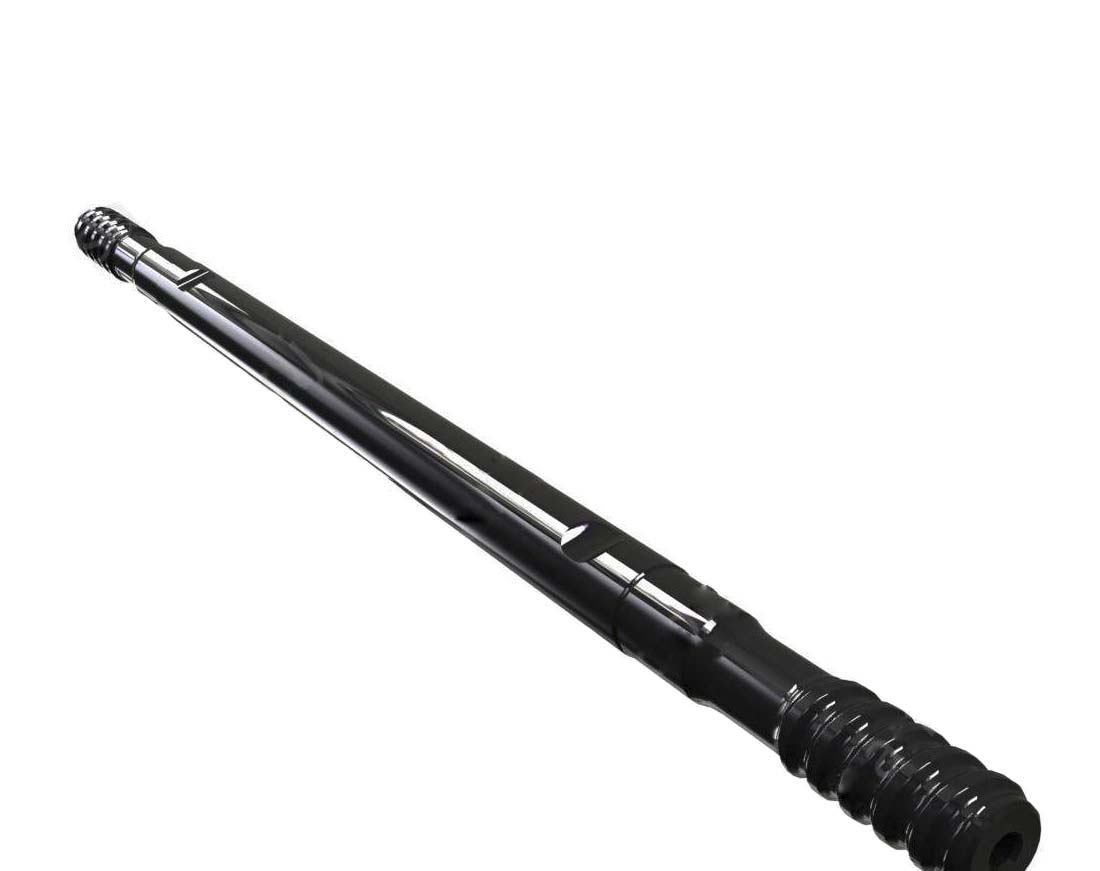

Drill rods
Our Drill Rods product line features precision-engineered, friction-welded rods with nitrated threads designed for maximum reliability and extended service life. Available in multiple diameters (76mm, 80mm, 89mm, 114mm) and lengths (1600mm to 6000mm), with both standard (HD) and enhanced (EP8) wall thickness options, our drill rods are engineered for seamless integration with major drilling rig systems. Featuring industry-standard API threads (2 3/8" Reg, 3 1/2" Reg) and premium nitrated thread treatment, our rods deliver superior strength, corrosion resistance, and durability across diverse drilling applications including water well drilling, mining, geothermal operations, and construction piling.
Premium rods for Hausherr, Domine, Bonne Esperance and compatible rigs
| Description | Weight (kg) | Thread Type | O.D. (mm) | I.D. (mm) | Wall Thickness (mm) |
|---|---|---|---|---|---|
| 76 HD × 3000mm | 39 | API 2 3/8" Reg | 76 | 30 | 6.35 |
| 76 HD × 3200mm | 41 | API 2 3/8" Reg | 76 | 30 | 6.35 |
| 76 HD × 4500mm | 56 | API 2 3/8" Reg | 76 | 30 | 6.35 |
| 76 HD × 6000mm | 73 | API 2 3/8" Reg | 76 | 30 | 6.35 |
| 76 EP8 × 3000mm | 46 | API 2 3/8" Reg | 76 | 30 | 8.0 |
| 76 EP8 × 3200mm | 58 | API 2 3/8" Reg | 76 | 30 | 8.0 |
| 76 EP8 × 4500mm | 66 | API 2 3/8" Reg | 76 | 30 | 8.0 |
| 76 EP8 × 6000mm | 86 | API 2 3/8" Reg | 76 | 30 | 8.0 |
| 80 × 1600mm | 32 | API 2 3/8" Reg | 80 | 25 | 8.0 |
| 80 × 3000mm | 54 | API 2 3/8" Reg | 80 | 25 | 8.0 |
| 80 × 3200mm | 57 | API 2 3/8" Reg | 80 | 25 | 8.0 |
| 80 × 4500mm | 78 | API 2 3/8" Reg | 80 | 25 | 8.0 |
| 80 × 6000mm | 101 | API 2 3/8" Reg | 80 | 25 | 8.0 |
| 89 HD × 3000mm | 50 | API 2 3/8" Reg | 89.1 | 25 | 6.35 |
| 89 HD × 3200mm | 53 | API 2 3/8" Reg | 89.1 | 25 | 6.35 |
| 89 HD × 4500mm | 70 | API 2 3/8" Reg | 89.1 | 25 | 6.35 |
| 89 HD × 6000mm | 90 | API 2 3/8" Reg | 89.1 | 25 | 6.35 |
| 89 EP8 × 3000mm | 58 | API 2 3/8" Reg | 89.1 | 25 | 8.0 |
| 89 EP8 × 3200mm | 61 | API 2 3/8" Reg | 89.1 | 25 | 8.0 |
| 89 EP8 × 4000mm | 74 | API 2 3/8" Reg | 89.1 | 25 | 8.0 |
| 89 EP8 × 4500mm | 82 | API 2 3/8" Reg | 89.1 | 25 | 8.0 |
| 89 EP8 × 6000mm | 106 | API 2 3/8" Reg | 89.1 | 25 | 8.0 |
| 114 × 3000mm | 69 | API 3 1/2" Reg | 114.3 | 42 | 6.35 |
| 114 × 4500mm | 96 | API 3 1/2" Reg | 114.3 | 42 | 6.35 |
| 114 × 6000mm | 122 | API 3 1/2" Reg | 114.3 | 42 | 6.35 |
| 114 EP8 × 3000mm | 79 | API 3 1/2" Reg | 114.3 | 42 | 8.8 |
| 114 EP8 × 4500mm | 110 | API 3 1/2" Reg | 114.3 | 42 | 8.8 |
| 114 EP8 × 6000mm | 142 | API 3 1/2" Reg | 114.3 | 42 | 8.8 |
Our engineering philosophy is simple: deliver maximum drilling efficiency through superior rod strength, optimized joint design, and extended service life. Every MSD drill rod is engineered for reliability, safety, and consistent performance under extreme operational stress.
Advanced friction welding creates uniform metallurgical bonds at rod joints. Eliminates weld defects and ensures 100% joint integrity under impact loading and tension stress.
Precision nitration treatment hardens threads to 60+ HRC. Superior corrosion resistance, galling prevention, and extended thread life—up to 50,000-150,000+ meters per rod.
High-tensile alloy steel provides optimal strength-to-weight ratio. Resists fatigue cracking and maintains structural integrity across millions of drilling cycles.
API 2 3/8" Reg and API 3 1/2" Reg threads ensure seamless compatibility with all major drilling rigs and equipment without custom adapters.
Standard (HD: 6.35mm) and enhanced (EP8: 8.0-8.8mm) wall thickness options match your rig power and drilling conditions. Balance penetration with rod durability.
OEM-quality construction at competitive Chinese factory pricing. Superior rod life reduces consumable costs and maximizes drilling profitability per meter.
MSD drill rods utilize advanced friction welding technology to create permanent, metallurgical bonds between rod body and threaded couplings. Unlike traditional welding methods, friction welding creates a uniform, defect-free bond with no weld porosity, inclusions, or stress concentrations. This advanced process delivers superior joint strength and enables rods to withstand millions of high-stress drilling cycles. Each weld is inspected to ensure 100% integrity, providing you absolute confidence in drilling string reliability even under extreme operational stress.
Precision nitration treatment hardens thread surfaces to 60+ HRC while maintaining core flexibility, preventing brittle fracture. This engineered hardness dramatically increases thread life, prevents galling and metal seizure during connections, and provides exceptional corrosion resistance in abrasive, wet drilling environments. Results: extended rod service life (50,000-150,000+ meters per rod), fewer rod retirements, and significantly reduced operational costs. Nitrated threads also enable rapid makeup/breakout of connections, reducing drilling downtime.
MSD drill rods are forged from premium, high-tensile alloy steel specifically selected for drilling applications. This material composition delivers optimal strength-to-weight ratio, enabling maximum load capacity while minimizing rod weight and reducing energy consumption. Advanced heat treatment ensures precise hardness (typically 45-52 HRC range) throughout the rod body, maximizing resistance to fatigue cracking and stress corrosion. This metallurgical foundation enables rods to withstand millions of high-frequency drilling impacts while maintaining structural integrity in challenging geological formations.
All MSD drill rods feature industry-standard API threads (2 3/8" Reg for compact rigs, 3 1/2" Reg for production systems) that ensure seamless compatibility with virtually all major drilling rigs globally. No custom adapters or modifications required—simply connect and drill. Universal thread standardization simplifies equipment inventory management, enables rapid rod exchanges across multiple projects, and ensures you're never locked into proprietary equipment connections.
MSD offers two wall thickness options to match your specific drilling requirements. Standard (HD) rods with 6.35mm walls provide balanced performance ideal for moderate-power rigs and softer formations, optimizing weight and penetration rate. Enhanced (EP8) rods with 8.0-8.8mm walls provide maximum strength for high-power rigs and challenging hard rock drilling, sacrificing slight weight penalty for superior impact resistance and extended rod life. This flexibility enables you to right-size rod specifications to your exact rig power and formation requirements, optimizing both drilling efficiency and operational safety.
MSD delivers OEM-quality drill rods at competitive Chinese factory pricing. Through superior manufacturing processes, advanced material selection, and nitrated thread technology, we achieve extended rod service life that dramatically reduces consumable costs per meter drilled. For drilling contractors managing complex multi-project operations, our cost-optimized rods provide significant competitive advantage without sacrificing reliability or safety.
Joint Integrity
Meters Per Rod
HRC Thread Hardness

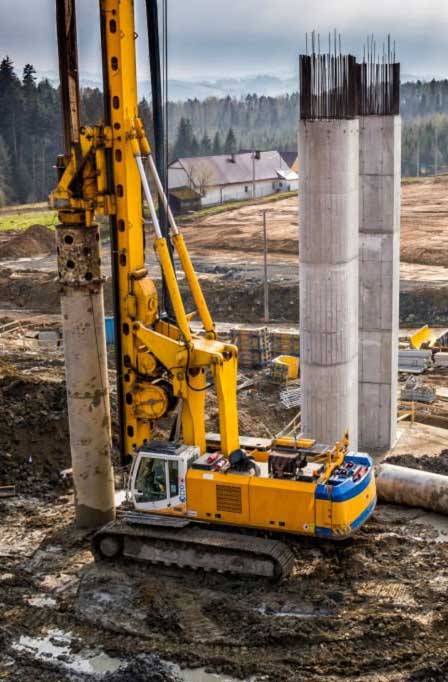

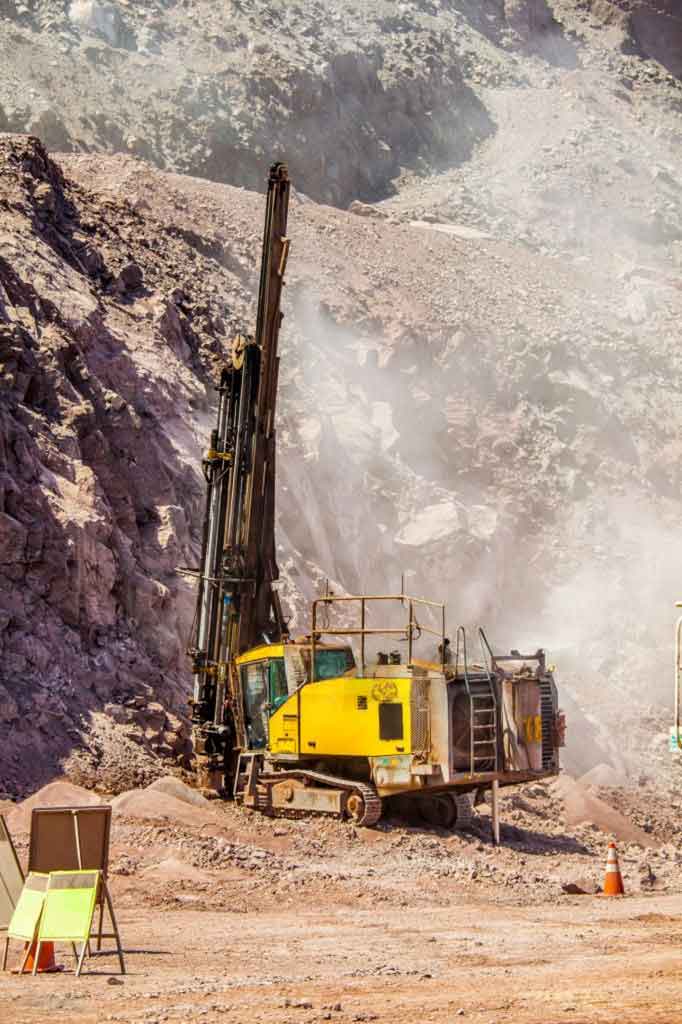

APPLICATIONS

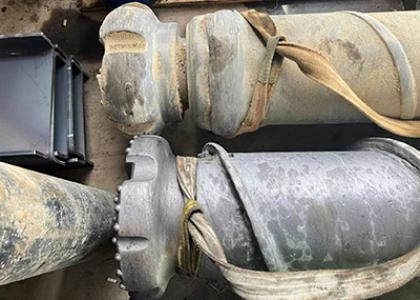

CASE STUDIES

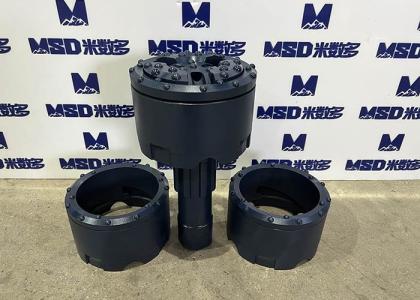

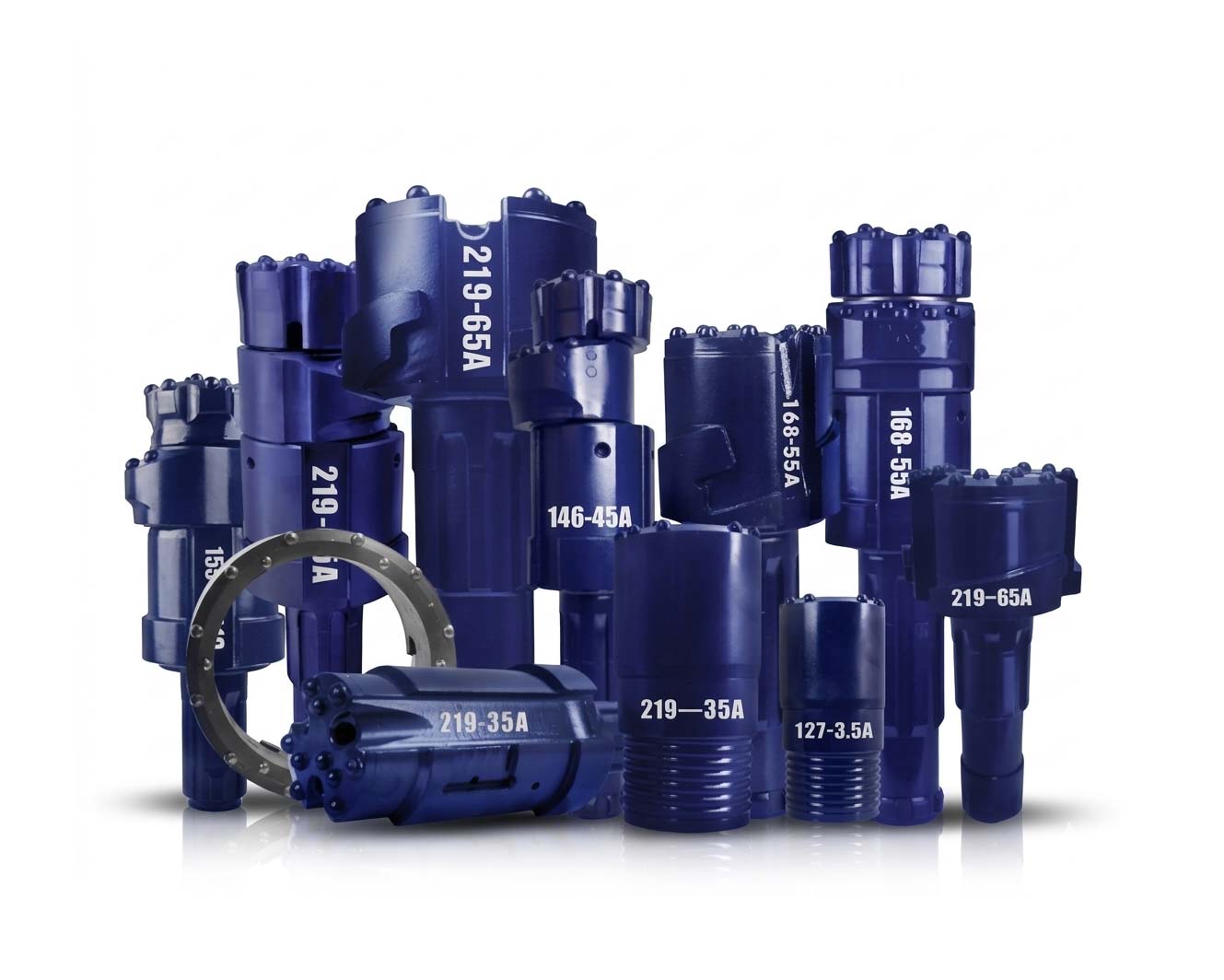

MSD Concentric Casing System achieved 100% hole completion across 36 water wells in South
Read More

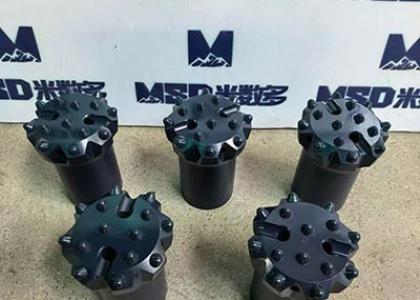

MSD T51-115mm thread button bit achieved 25% faster drilling and 30% longer life at Austra
Read More

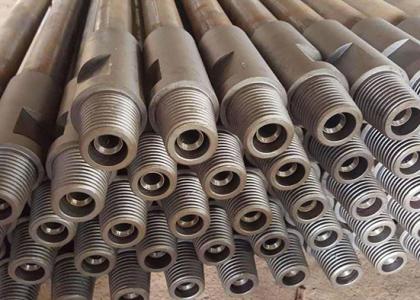

MSD DTH hammer + drill pipe system achieved 24% faster drilling and 26% lower cost at Braz
Read More

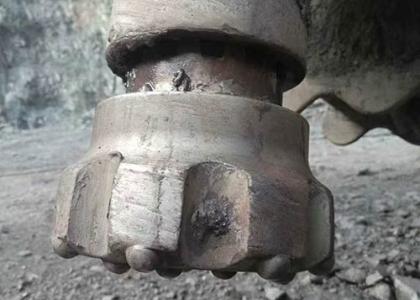

MSD QL60-178 DTH bit achieved 340m per bit and 35% lower drilling cost in Russian hard roc
Read More
MSD custom 500mm DTH bit achieved zero structural failures and 40% efficiency gain in Taiw
Read MoreA drill rod, also known as drilling pipe or drill stem, is a precision-engineered tubular component that connects the drilling rig to the DTH hammer and drilling bits, transmitting rotational torque and percussive force while supporting the weight of the drilling string. These critical components ensure optimal force transmission, structural integrity, and drilling efficiency across the entire depth of the hole. As a leading manufacturer in China with over two decades of expertise, MSD has perfected the design and production of drill rods serving water well drilling, mining exploration, geothermal operations, foundation piling, and construction industries globally. Our expertise ensures every drill rod we produce delivers superior joint integrity, extended service life, and exceptional reliability across 50+ countries.
The performance of any drill rod system depends on the synergy between three critical elements. Joint integrity is paramount—friction-welded connections create permanent metallurgical bonds that eliminate weld defects and enable the rod to transmit millions of impacts without joint failure. Thread quality determines service life and ease of makeup/breakout: nitrated threads hardened to 60+ HRC resist galling, corrosion, and metal fatigue, enabling rods to survive 50,000-150,000+ meters of drilling. Material selection is equally critical: premium alloy steel provides optimal strength-to-weight ratio, resisting fatigue cracking and stress corrosion while maintaining precise dimensional stability across millions of drilling cycles. Together, these elements create a drilling string component that reliably supports maximum drilling loads while minimizing equipment failures and operational downtime.
Optimal drill rod selection requires matching four critical parameters to your specific drilling conditions. Rod diameter (76mm, 80mm, 89mm, 114mm) must match your rig's drilling capacity and hole requirements—larger diameter rods provide greater strength and load capacity for deep, demanding drilling; smaller diameters optimize mobility and penetration rate for shallow, portable rigs. Thread type (API 2 3/8" Reg for compact rigs, API 3 1/2" Reg for production systems) must match your existing drilling equipment to ensure compatibility without custom adapters. Rod length (1600mm to 6000mm) is determined by your drilling rig's rod handling capacity and drilling objectives. Wall thickness selection is critical: standard (HD, 6.35mm) rods optimize penetration rate and reduce weight for moderate-power rigs in softer formations; enhanced (EP8, 8.0-8.8mm) rods provide maximum strength for large rigs and challenging hard rock drilling. Proper specification matching maximizes drilling efficiency, minimizes rod failures, and optimizes total cost of drilling operations.
Beyond manufacturing, we provide complete drill rod system solutions. Our technical team conducts detailed drilling requirements analysis—formation geology, drilling depth, rig specifications, target hole quality—to recommend optimal rod specifications that balance drilling efficiency, equipment safety, and cost-per-meter economics. By optimizing rod selection, we help you achieve maximum drilling speed, minimize rod failures and operational downtime, and reduce consumable costs through extended rod service life. With inventory spanning 4 diameters, 2 wall thickness options, multiple thread standards, and lengths from 1600mm to 6000mm, combined with agile production capability, we ensure your project stays on schedule without delays. MSD delivers OEM-quality drill rods at competitive Chinese factory pricing, backed by technical support and proven reliability delivering 50,000-150,000+ meters of reliable performance per rod. Trust MSD for drilling rods and expert partnership that maximize your drilling profitability and operational safety.
