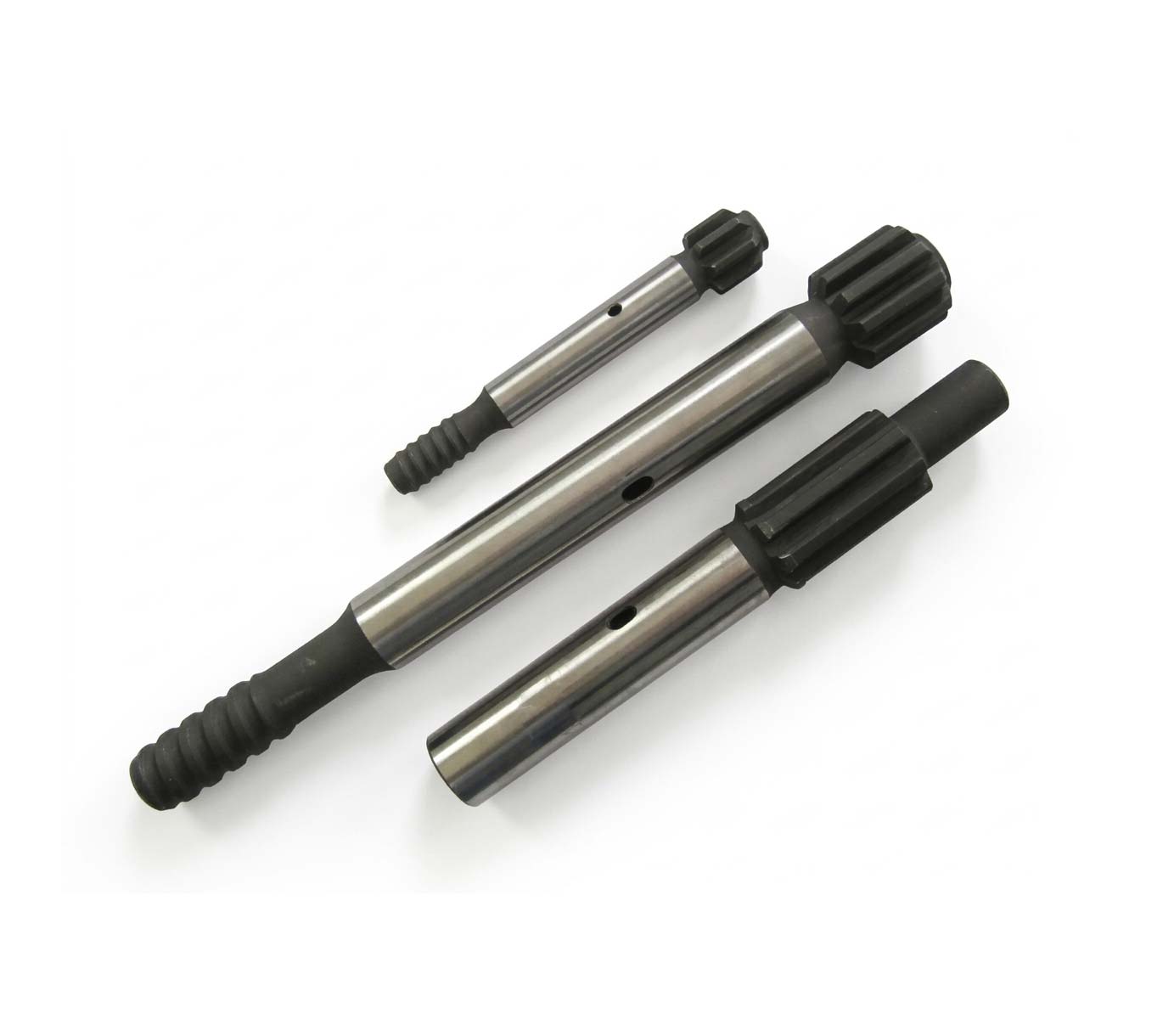

Shank Adapter

Your Professional Shank Adapter Manufacturer

A shank adapter, also known as a drilling adapter or bit adapter, is a precision-engineered connection component that links a DTH (Down the Hole) hammer to specialized drilling bits and tools. These critical components ensure optimal force transmission, vibration control, and equipment compatibility across diverse drilling applications. As a leading manufacturer in China with over two decades of expertise, MSD has perfected the design and production of shank adapters serving water well drilling, mining, geothermal, foundation piling, and construction industries globally. Our expertise ensures every shank adapter we produce delivers reliable force transmission, seamless equipment integration, and exceptional performance across 50+ countries.

The Core of Performance: Thread Precision, Material Selection, and Geometry Optimization

The performance of any shank adapter depends on the synergy between three critical elements. Thread precision—exact pitch, diameter, and surface finish—ensures secure connection without galling or fretting wear, enabling smooth force transmission and rapid tool changes. Material selection is paramount: premium alloy steel hardened to optimal levels (45-55 HRC) provides the strength to withstand millions of impact cycles while maintaining dimensional stability. Geometry optimization—bore diameter, wall thickness, and internal configuration—minimizes vibration transmission and energy loss while distributing stress evenly throughout the adapter structure. Together, these elements create a connection component that reliably links the hammer to specialized tools while preserving drilling efficiency and protecting downstream equipment from excessive fatigue stress.

Thread Selection by Application: R-Series, T-Series, and Specialty Connections

Selecting the correct shank adapter thread type is essential to equipment compatibility and drilling success. MSD offers comprehensive thread options to match your specific drilling equipment. R-series threads (R22, R23, R25, R28, R32, R38) are standard connections on many compact and medium-duty rigs, particularly common in water well, exploration, and smaller-scale quarry operations. T-series threads (T35, T38, T45) are specialized connections on larger-diameter rigs used in production mining, deep-hole operations, and major infrastructure projects. Specialized bushing adapters (22×108mm, 25×108mm, 22×159mm) provide compatibility with equipment using non-standard connections. Proper thread selection ensures compatibility with your specific hammer, drill string, and bit equipment while enabling rapid tool changes and seamless adaptation across multiple drilling applications. Our compatibility reference provides detailed matching between common drilling equipment models and recommended adapter thread types.

Why Partner with MSD?

Beyond manufacturing, we provide complete drilling equipment compatibility solutions. Our technical team maintains comprehensive compatibility databases matching equipment models to optimal adapter specifications, ensuring you select the perfect connection for your specific rig and drilling objectives. By optimizing adapter selection, we help you achieve maximum drilling efficiency, minimize equipment downtime, and reduce consumable costs through rapid, hassle-free tool adaptation. With a massive inventory spanning 10+ thread types and 85+ equipment compatibility codes, combined with agile production capability, we ensure your project stays on schedule without delays. MSD delivers OEM-quality shank adapters at competitive Chinese factory pricing, backed by technical support and proven reliability across diverse drilling operations globally. Trust MSD for drilling adapters and expert partnership that maximize your equipment flexibility and operational profitability.
