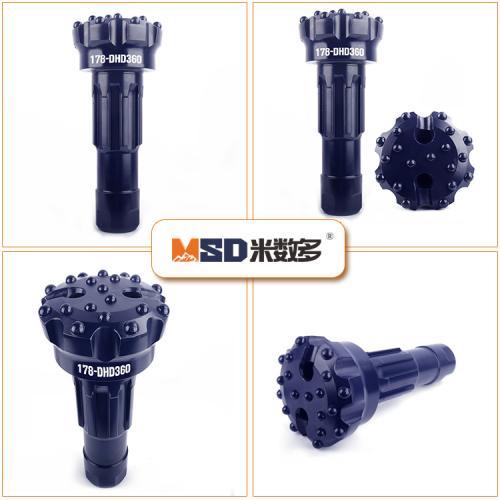

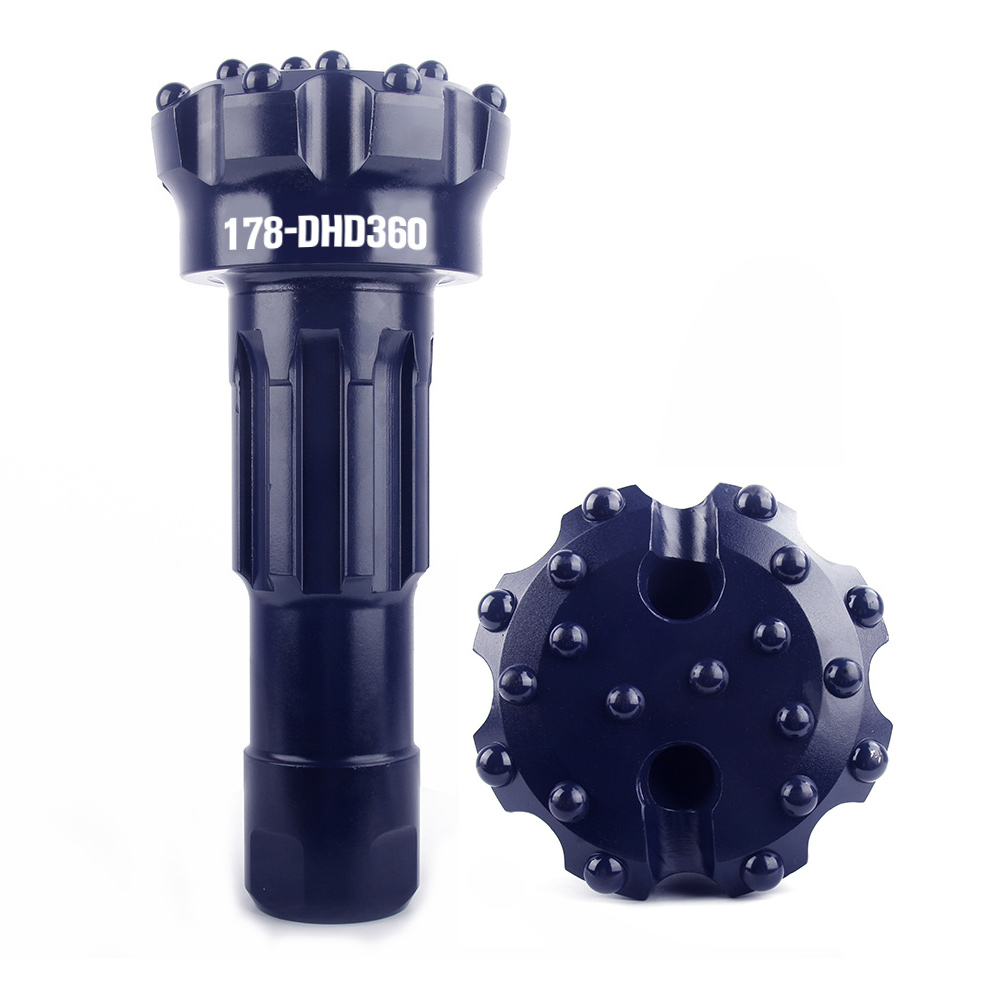

High pressure DTH 178-DHD360 drill bit with hammer for mining
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: 178-DHD360
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 10000 pieces per month pieces per month
Email This Page Contact Now
- Product Description
- 1 Brand: MSD
- 2 Product alias: DTH drilling bit
- 3 Drilling depth: 1000m
- 4 Impact frequency: 2000~2800(Hz)
- 5 Bit size: 178mm
- 6 Scope of application: Water well drilling
- 7 Drilling speed: 500（mm/min）
- 8 Material: Tungsten Carbide And Hard Alloy Steel
High pressure DTH 178-DHD360 drill bit with hammer for mining
We provide innovative equipment, consumables and service for Geological drilling. Whether the application is surface and underground mining, infrastructure, civil engineering, geotechnical, MSD is always increasing customers' productivity.

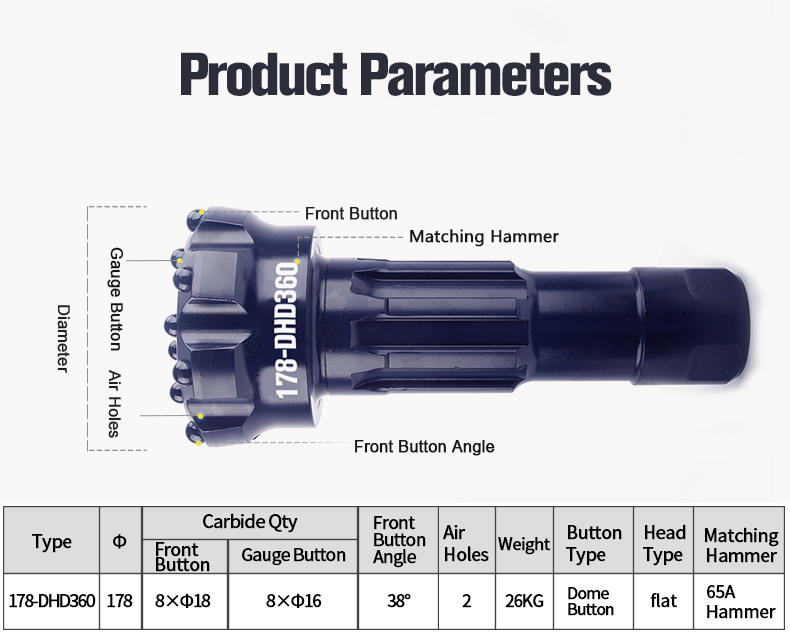

| Diameter | Button | Button Angel | Air Holes | Weight (kgs) | ||
| mm | inch | Gauge | Front | |||
| Drill bits for DHD360 hammers | ||||||
| 152 | 6 | 8x18 | 4x16+4x14 | 38 | 2 | 23 |
| 165 | 6 1/2 | 8x18 | 8x16 | 38 | 2 | 24 |
| 178 | 7 | 8x18 | 10x16 | 38 | 2 | 26 |
| 185 | 7 1/4 | 8x18 | 10x16 | 38 | 2 | 26.8 |
| 194 | 7 1/2 | 10x18 | 13x16 | 38 | 2 | 27.5 |
| 203 | 8 | 10x18 | 8x16+6x16 | 38 | 2 | 31 |
| 216 | 8 1/2 | 10x18 | 8x16+6x16 | 38 | 2 | 47 |
| 235 | 9 1/4 | 12x18 | 30x16 | 38 | 2 | 54 |
| 254 | 10 | 12x18 | 12x18+8x16 | 38 | 2 | 65 |
Remark:Other sizes can be made according to your needs
--------------------------------------------FAQ------------------------------------------
Q: About DTH 178-DHD360 drill bit do you offer OEM service?
A: Yes, we offer OEM service if you have regular requirement
Q: What are the project types of DTH 178-DHD360 drill bit?
A: Project types include: Blast holes, Quarry,Anchoring,Infrastructure,Geothermal holes,Well drilling,ect.
Q: Can you offer us the free samples of DTH 178-DHD360 drill bit?
A: Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
Q: What about the shipment of DTH 178-DHD360 drill bit?
A: Based on order quantity. We can send it to you by Express, by Air, by Sea, and by Train. Or send the goods to your Chinese agent.
-
