190 high pressure DTH drill bit with DHD360 hammer for well drilling
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: 190-DHD360
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 100000 pieces per month pieces per month
Email This Page Contact Now

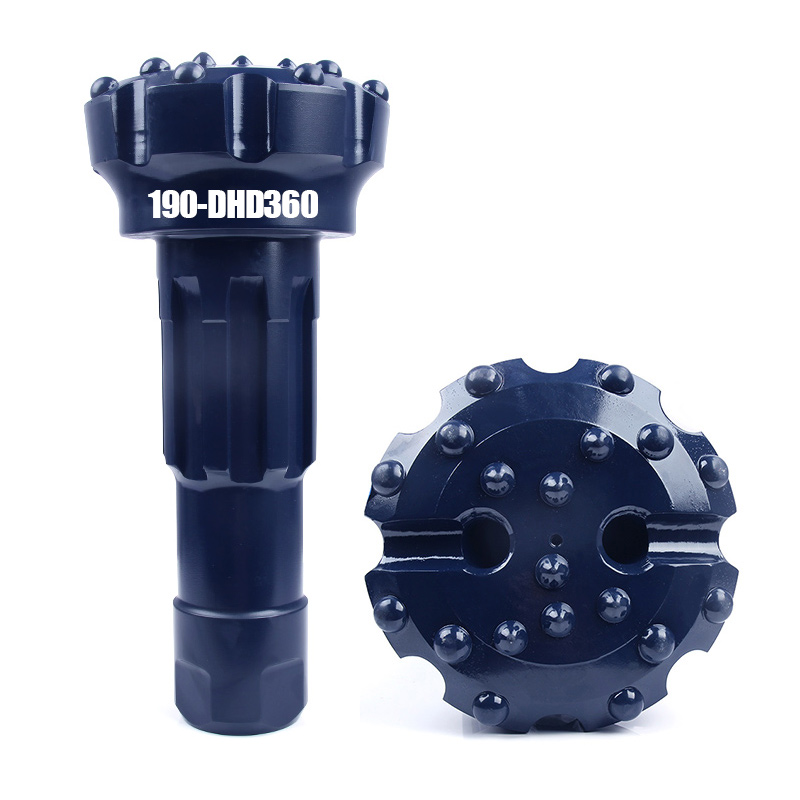

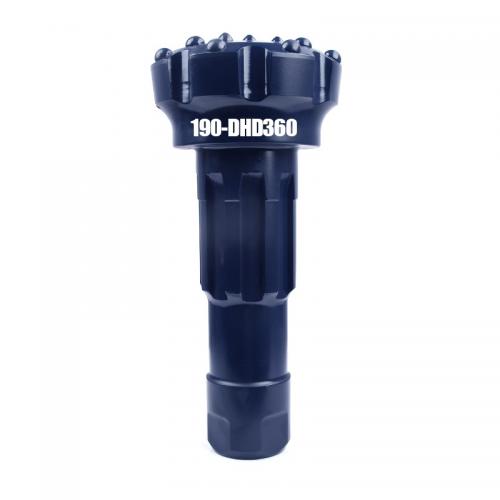

190 high pressure DTH Drill Bit with DHD360 hammer for well drilling
Diameter | Button | Button Angel | Air Holes | Weight (kgs) | ||
mm | inch | Gauge | Front | |||
Drill bits for DHD360 hammers | ||||||
152 | 6 | 8x18 | 4x16+4x14 | 38 | 2 | 23 |
165 | 6 1/2 | 8x18 | 8x16 | 38 | 2 | 24 |
178 | 7 | 8x18 | 10x16 | 38 | 2 | 26 |
185 | 7 1/4 | 8x18 | 10x16 | 38 | 2 | 26.8 |
194 | 7 1/2 | 10x18 | 13x16 | 38 | 2 | 27.5 |
203 | 8 | 10x18 | 8x16+6x16 | 38 | 2 | 31 |
216 | 8 1/2 | 10x18 | 8x16+6x16 | 38 | 2 | 47 |
235 | 9 1/4 | 12x18 | 30x16 | 38 | 2 | 54 |
254 | 10 | 12x18 | 12x18+8x16 | 38 | 2 | 65 |
Remark:Other sizes can be made according to your needs
Shank types: DHD3.5, DHD340A, DHD350R, DHD360, DHD380.
DTH Rock Drill Bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-305mm)
Made from high quality alloy steel and advanced heat-treatment,Team whole bits are ensured extreme protection against wear and fatigue.They're also available in four different bit head face designs,include Flat,Concave,Convex and Drop Center.And two different carbide shapes,spherical and ballistic to tackle any challenge and rock formations.
APPLICATION
For mining,quarry blasting hole borehole drilling
For water well,deep hole well,oil and gas open hole drilling
For foundation and piling drilling
For mining,quarry blasting hole borehole drilling
----------------------------------FAQ-------------------------------------
Q. If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice.
Q: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q.Where is your main market?
A:We have been exported to France,Canada,Thailand,Poland,Middle East, South Africa,Ghana,Russia,Australia,Spain and many other Europe Countries.,we have get good reputation from our customers against its high quality,fair price and leading service.
Q. What about the package?
A:We pack with carton box,plywooden case outside.Also can based on your requirement to pack.
Q.Which coutry is your main market?
A:We have been exported to France,Canada,Thailand,Poland,Middle East, South Africa,Ghana,Russia,Australia,Spain and many other Europe Countries.,we have get good reputation from our customers against its high quality,fair price and leading service.
-
