152-DHD350 DTH hammer bit with high pressure for mining

Quick Details:
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: 152-DHD350
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 10000 pcs per month pieces per month

Email This Page Contact Now

Product Description

1 Brand: MSD
2 Product alias: DTH hammer bit
3 Drilling depth: 1000(m)
4 Impact frequency: 2000~2800（Hz）
5 Scope of application: Mining well drilling
6 Drilling speed: 500（mm/min）
7 Place Of Origin: Hunan, China (Mainland)

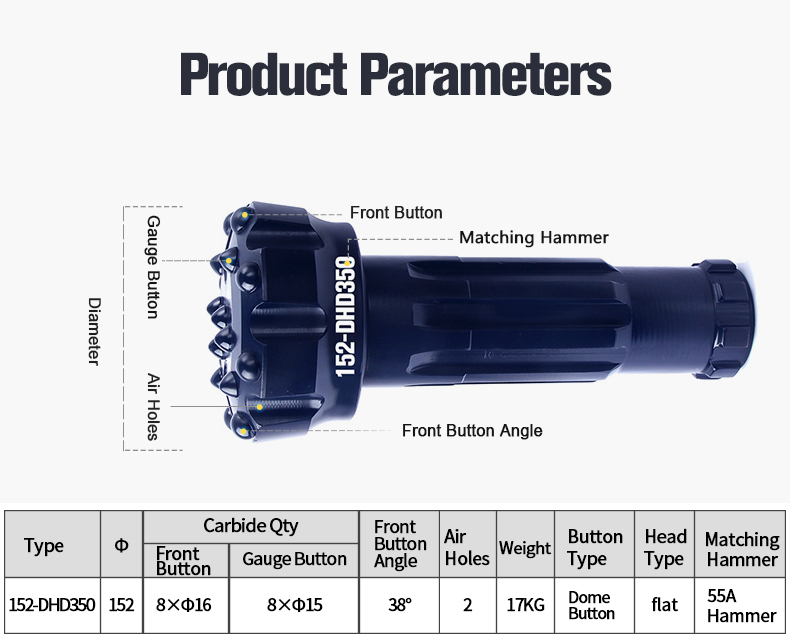

152-DHD350 DTH Hammer bit with high pressure for mining

Diameter		Button		Button Angel	Air Holes	Weight (kgs)
mm	inch	Gauge	Front	Button Angel	Air Holes	Weight (kgs)
Drill bits for DHD350 hammers
138	5 1/2	7x18	7x15	38	2	15.6
146	5 3/4	7x18	7x15	38	2	16.1
152	6	8x16	8x15	38	2	17
165	6 1/2	8x18	8x16	38	2	18
178	7	8x18	10x16	38	2	24
185	7 1/4	8x18	10x16	38	2	26
203	8	10x18	8x18+6x16	38	2	31

Remark:Other sizes can be made according to your needs

-------------------------------------FAQ------------------------------------------

Q: What kind of rock drilling tools can you provide except DTH hammer bit?

A: We have an abundant product porfolio,covering DTH Water well drilling bits,top hammer tools,casing systems,and related accessories

Q: Can you offer us the free samples of D152-DHD350 DTH hammer bits?
A: Normally we do not offer free samples, but we could properly adjust according to detailed requirement.

Q: What are the after-sales services of DTH hammer bits?
A: If you have any questions about DTH hammer bits:

1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time
3. Free replacement will provide once the failure confirmed caused by our product quality

Q: What are the project types of DTH hammer bit?

A: Project types include: Blast holes, Quarry,Anchoring,Infrastructure,Geothermal holes,Well drilling,ect.

Q: What are the rock type of DTH hammer button bits?

A: Drill rock type include: Granite, Marble, Limestone, Basalt, ect.

Tag: DHD350 drilling bit, DTH hammer bits, mining drilling bit, water well drilling bit, rock drill bits,
