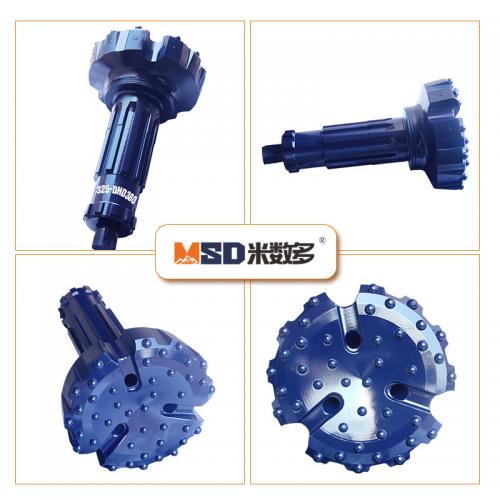

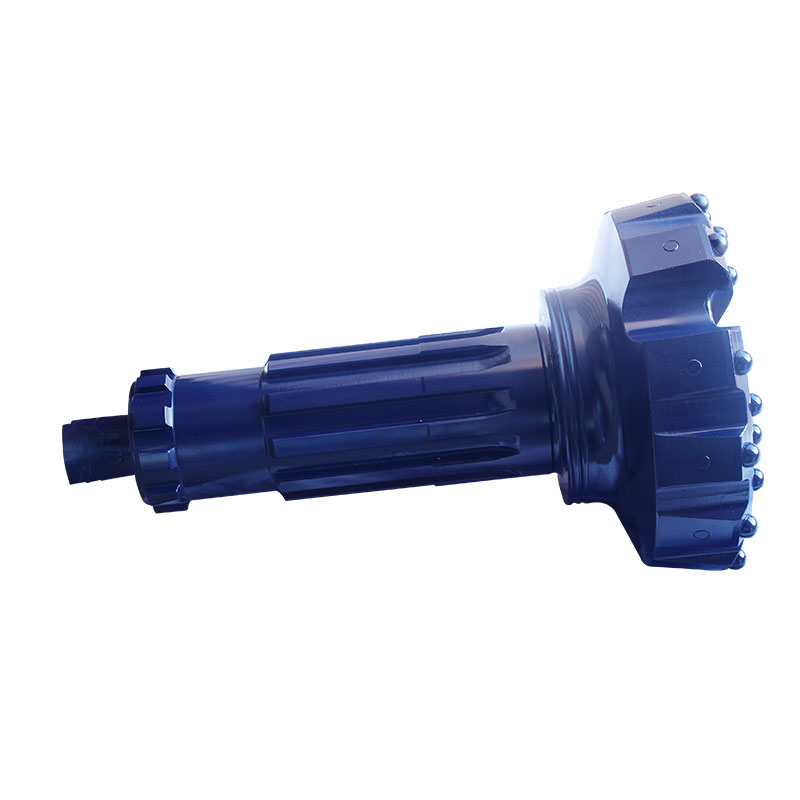

Large diameter DTH hammer 325-DHD380 DTH drill bit with high pressure

Quick Details:
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: 325-DHD380
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 10000 pieces per month pieces per month

Email This Page Contact Now

Product Description

1 Brand: MSD
2 Product alias: DTH drilling bit
3 Drilling depth: 1000（m）
4 Impact frequency: 2000~2800（Hz）
5 Scope of application: Water well drilling mining
6 Drilling speed: 500（mm/min）
7 Place Of Origin: Hunan, China (Mainland)
8 Material: Tungsten Carbide And Hard Alloy Steel

Large diameter DTH Hammer 325-DHD380 DTH Drill Bit with high pressure

Diameter		Button		Button Angel	Air Holes	Weight (kgs)
mm	inch	Gauge	Front	Button Angel	Air Holes	Weight (kgs)
Drill bits for DHD380 hammers
203	8	10x18	8x18+6x16	38	2	47
216	8 1/2	10x18	8x18+6x16	38	2	53
235	9 1/4	12x18	12x18+8x16	38	2	57.5
254	10	12x18	20x18+9x16	38	2	61
275	11	12x18	20x18+9x16	38	2	71
305	12	12x18	20x18+9x16	38	2	95

Remark:Other sizes can be made according to your needs

---------------------------------------------FAQ-------------------------------------------

Q: Which DTH Hammers are applicable to DTH Bit?

A: Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, etc.

Q: What are the dimensions of DTH Bit converted to inches?

A: Inch available: 3", 4", 5", 6", 8", 12", etc...

Q: DTH Hammer Bit which industry can use?

A: Mining, tunnel, foundation pit, quarry, oil, well, etc.

Q: Do you have different type for different kind of stone?

A: Yes, according hardness of stone and stone's feature, we have different type respectively.

Q: DTH Bit Do you offer free samples?

A: Normally we do not offer free samples, but we could properly adjust according to detailed requirement.

Tag: DTH drill bits, hammer bits, D325 drill bit, DHD380 drill bits, water well drill bit,
