6 Inch QL60 DTH Hammer 15-35 Bar Air Pressure Replace Atlas Copco Hammers

6 Inch QL60 DTH Hammer 15-35 Bar Air Pressure Replace Atlas Copco Hammers
  • 6 Inch QL60 DTH Hammer 15-35 Bar Air Pressure Replace Atlas Copco Hammers - 0
  • 6 Inch QL60 DTH Hammer 15-35 Bar Air Pressure Replace Atlas Copco Hammers - 1
  • 6 Inch QL60 DTH Hammer 15-35 Bar Air Pressure Replace Atlas Copco Hammers - 2
  • 6 Inch QL60 DTH Hammer 15-35 Bar Air Pressure Replace Atlas Copco Hammers - 3
6 Inch QL60 DTH Hammer 15-35 Bar Air Pressure Replace Atlas Copco Hammers
Quick Details:
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: QL60
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 10000pcs per one month pieces per month

Email This Page  Contact Now
  • Product Description

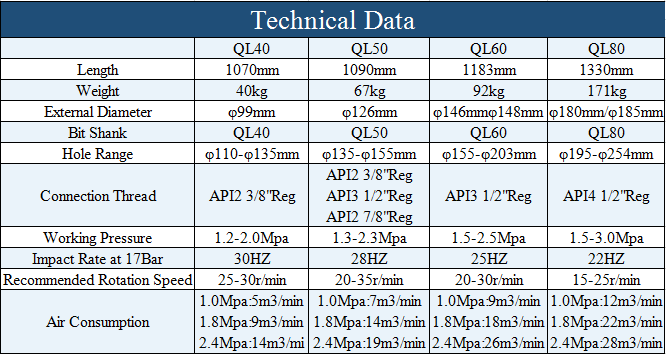

  • 1   Working Pressure:: 1.5-2.5Mpa
  • 2   Bits Dia. Fitted:: 152mm-178mm
  • 3   Weight:: 92Kg
  • 4   Material:: Quality Alloy Steel
  • 5   Size:: 6 Inch
  • 6   Type:: QL60 Shank
  • 7   Connect Thread:: API 2 3/8" Reg-6 5/8"Reg
  • 8   Place Of Origin: Hunan, China (Mainland)
  • 6 Inch QL60 DTH Hammer 15-35 Bar Air Pressure Replace Atlas Copco Hammers

6 Inch DTH QL60 Hammer 15-35 Bar Air Pressure Replace Atlas Copco HammersQL.png

Main features:

1.Drill bit don't need nylon tube, so avoid troubles happen, nylon tube fracture, damage and expansion and contraction.

2.Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than DTH Hammer with nylon tube.

3.Simple structure, less spare parts, easy and cheap maintenance.

4.Internal parts are hardened, long working life and less failure.

5.The joint and the drive chuck are connected with the external cylinder by thread, which is easy to disassemble.

-------------------------------------------------FAQ--------------------------------------------

Q: May i know other type of  DTH Hammer shank?

A:Shank types including COP, QL,DHD, MISSION,HD,IR, SD,TD, etc.


Q: May i know the size of DTH Hammer shank?

A: High air pressure DTH hammer size from 3" to 12"(76mm-304mm)


Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.


Q: Can we select the DTH Hammer color?
A: Yes, We color the product according to the color you need.


Q: Do you have after-sale service and warranty service?

A: Any quality or quantity problem once confirmed, we will reply you within 24 hours and give you a solution.
