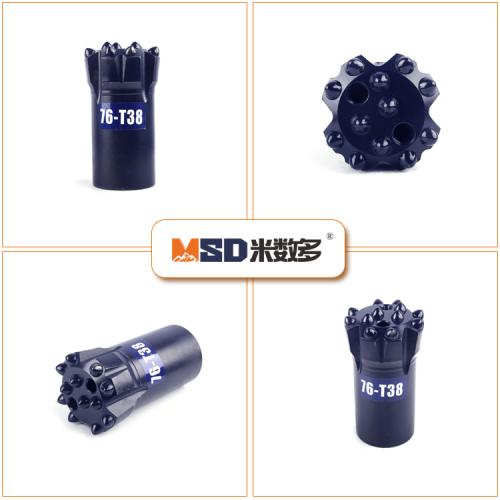

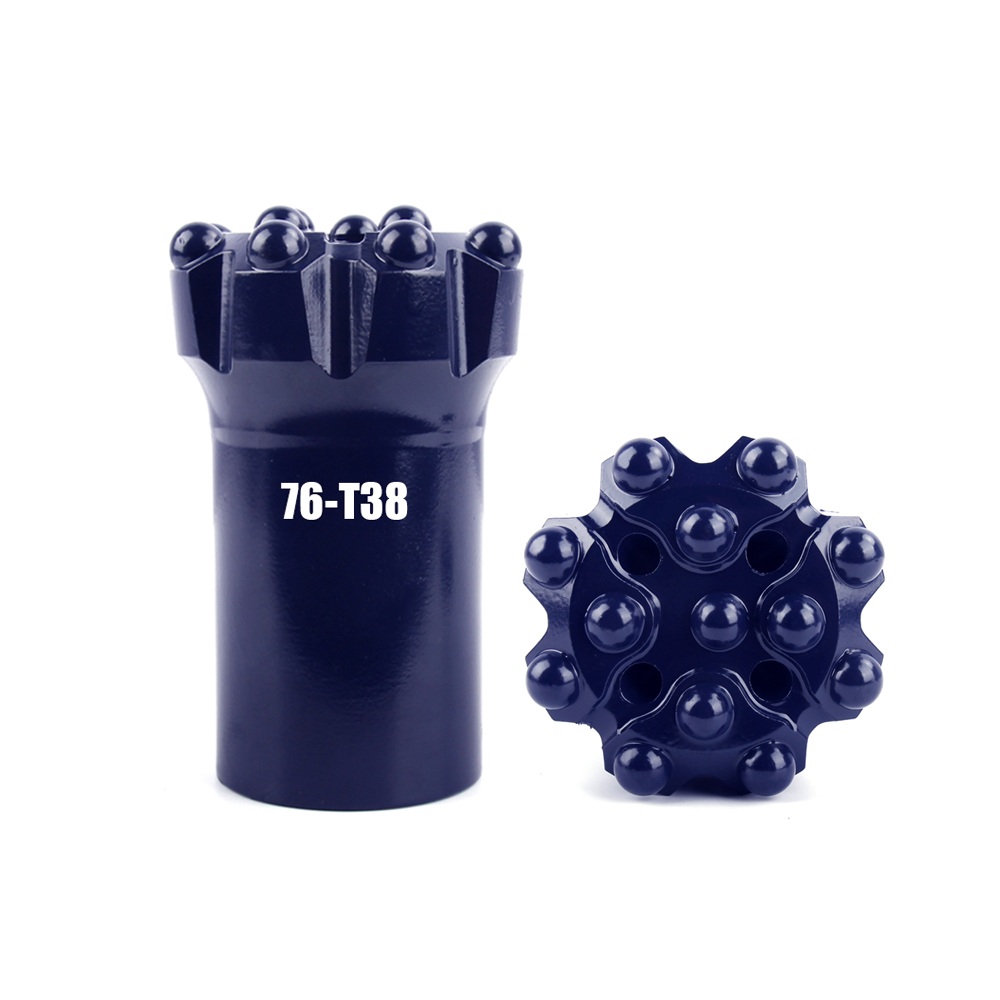

Threaded bits 76-T38 Button bit, flat face and dome Eight gauge buttons

Quick Details:
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: 76-T38（13 Buttons）
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 100000 pieces per month pieces per month

Email This Page Contact Now

Product Description

1 Face Shape: Flat, Drop Center
2 Model Number: Retrac Button Bit
3 Bit Face: FF, DC, Concave, Convex
4 Bit Type: Button Bit, Flat Face And Dome
5 Machine Type: Tungsten Carbide And Hard Alloy Steel
6 Place Of Origin: Hunan, China (Mainland)
7 Port: Any port in China
8 The Other Name: Threaded bits
9 Brand: MSD

Threaded bits 76-T38 Button bit, flat face and dome Eight gauge buttons, five front flushing holes

1.The Threaded Drill Bit are equipped with the hydraulic drilling jumbo and used for crush rock ,and it is widely used in tunnel construction, large scale mine(open and underground )and large section tunnel advance in metal mine.

2.Our special technology develops the sharpest ball tooth, and the bits with sharp buttons are suitable for hard and mid -hard rock, and it also have excellent wear resistance and driving speed.The bits with round buttons are widely used in hard rock ,with the advantage of high abrasion and impact resistance.

Dia.(Mm)	Thread Connection	Buttons		Air Holes		Weight(Kg)
Dia.(Mm)	Thread Connection	Gauge	Front	Air Holes		Weight(Kg)
51	R32	4×11	2×9	1	2	1.00
64	R32	6×12	3×11	3	1	1.70
64	T38	6×12	3×10	1	2	1.70
76	T38	7×12	4×10	3	1	3.00
76	T45	8×11	6×10	4	-	3.00
78	T38	8×11	5×11	4	-	3.10
89	R32	8×12	6×11	4	-	3.50
89	R38	8×12	6×11	4	-	3.50
89	T45	8×12	6×11	4	-	3.50
89	T51	8×12	6×11	4	-	4.50
102	T45	8×14	6×13	4	-	5.50
102	T51	8×14	6×13	4	-	5.50
105	R38	8×14	6×13	4	-	4.50
115	R38	8×14	7×13	4	-	4.80
115	T51	8×14	7×13	4	-	4.80
125	R38	8×14	8×13	4	-	5.50
127	T51	8×14	8×13	4	-	6.50

----------------------------------------FAQ-----------------------------------------------

Q: Do you agree sample order of 76-T38 Button bit?

A: Yes,we are welcome your sample order of 76-T38 Button bit to testing our quality

Q: Can we change the button type of 76-T38 Button bit?

A: Yes, you can choose button type like spherical, parabolic,and flat button, etc.

Q: Do you have after-sale service and warranty service of 76-T38 Button bit ?

A: Any quality or quantity problem once confirmed, we will reply you within 24 hours and give you a solution.

Q: How to control the quality of 76-T38 Button bit?

A: We should be checking & testing everyone 76-T38 Button bit before shipment.

Q: What methods of payment are accepted, if we need place an order of 76-T38 Button bit for you?

A: We agree T/T,L/C,West Union,Ali Pay and Paypal

Tag: top hammer drill bits, threaded bits, D76mm button bit,
