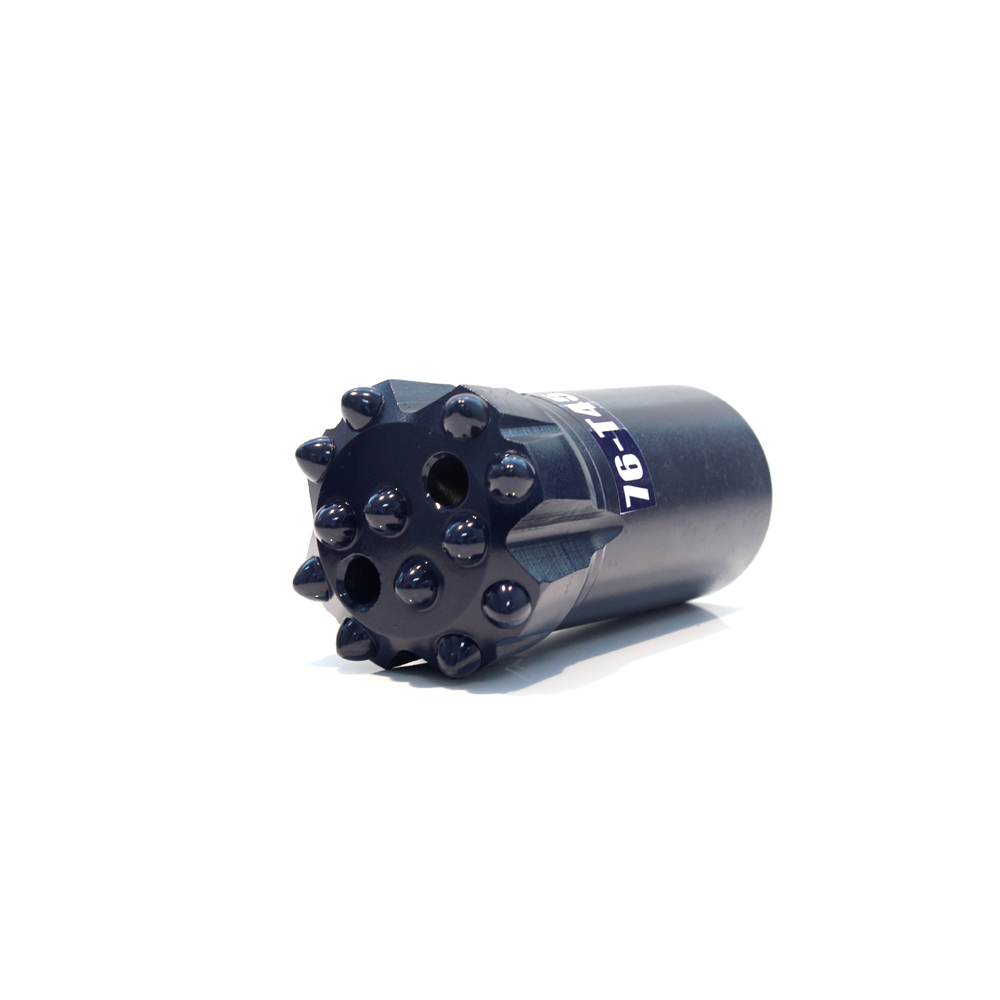

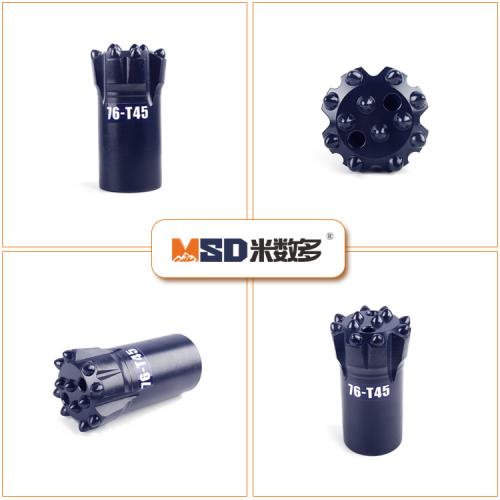

High Performance Rock Drilling Button Bits D76-T45

Quick Details:
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: 76-T45
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 100000 pieces per month pieces per month

Email This Page Contact Now

Product Description

1 Applications: rock Blasting,water well drilling
2 Face Shape: Flat,Center drop
3 Body Design: Sandvik Retrac Body Shape, Atlas Retrac Body Shape
4 Usage: Drilling Hole
5 Skirt Body: Standard, Retrac
6 Color: As Request
7 Type: 76-T45
8 Material: Tungsten Carbide And Hard Alloy Steel

High Performance Rock Drilling Button Bits D76-T45

Our special technology develops the sharpest ball tooth, and the bits with sharp buttons are suitable for hard and mid -hard rock, and it also have excellent wear resistance and driving speed.The bits with round buttons are widely used in hard rock ,with the advantage of high abrasion and impact resistance.

Dia.(Mm)	Thread Connection	Buttons		Air Holes		Weight(Kg)
Dia.(Mm)	Thread Connection	Gauge	Front	Air Holes		Weight(Kg)
51	R32	4×11	2×9	1	2	1.00
64	R32	6×12	3×11	3	1	1.70
64	T38	6×12	3×10	1	2	1.70
76	T38	7×12	4×10	3	1	3.00
76	T45	8×11	6×10	4	-	3.00
78	T38	8×11	5×11	4	-	3.10
89	R32	8×12	6×11	4	-	3.50
89	R38	8×12	6×11	4	-	3.50
89	T45	8×12	6×11	4	-	3.50
89	T51	8×12	6×11	4	-	4.50
102	T45	8×14	6×13	4	-	5.50
102	T51	8×14	6×13	4	-	5.50
105	R38	8×14	6×13	4	-	4.50
115	R38	8×14	7×13	4	-	4.80
115	T51	8×14	7×13	4	-	4.80
125	R38	8×14	8×13	4	-	5.50
127	T51	8×14	8×13	4	-	6.50

-------------------------------------------FAQ--------------------------------------------

Q: How can i place an order of Rock Drilling Button Bits D76-T45

A: Please tell us specifications of button bit, let's make a contract

Q: How can i visit your factory

A: Please inform to us when you have a visitting plan,we will provide all traffice details in China

Q: Do you agree sample order of Threaded Drill Bits?

A: Yes,we are welcome your sample order to testing our quality

Q: Can we change the type of threaded drill bits button?

A: Yes, you can choose spherical, parabolic,and flat button, etc.

Q: Do you have after-sale service and warranty service?

A: Any quality or quantity problem once confirmed, we will reply you within 24 hours and give you a solution.
